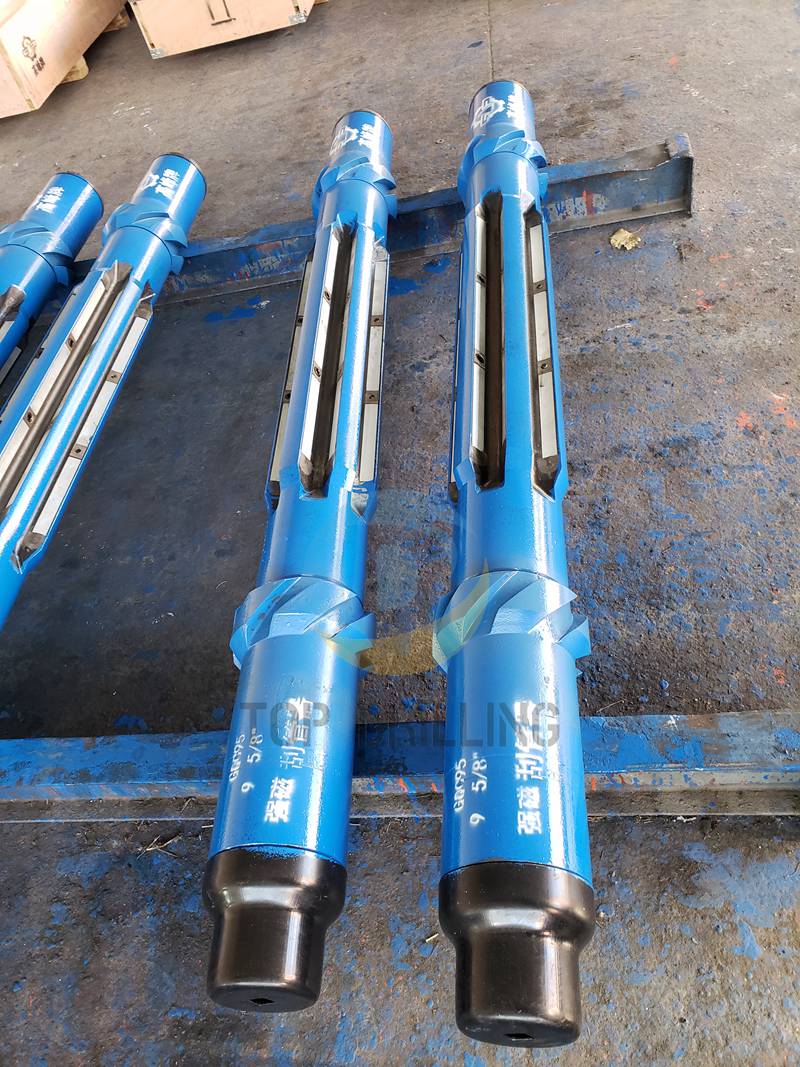

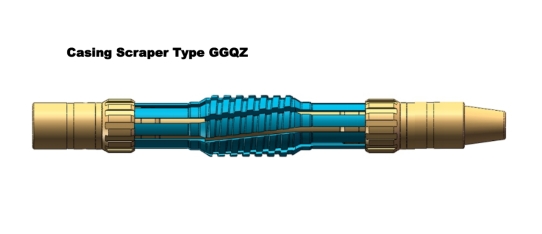

Casing Scraper Type GGQZ

Type GGQZ casing scraper is a kind of tubing and casing cleaning tool, using integral annular scraper structure. This scraper is a non-rotary scraper, can be used with other tools, when other tools need to rotate, this scraper part is not rotating, with the upper and lower joint rotating, will not affect the use of scraper and other tools. Drop proof because of integral scraper design, circular scraper 360 degree full coverage, ensure no dead Angle of scraping, improve the efficiency of scraping.

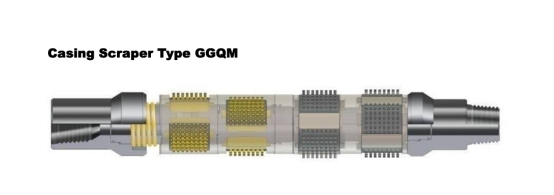

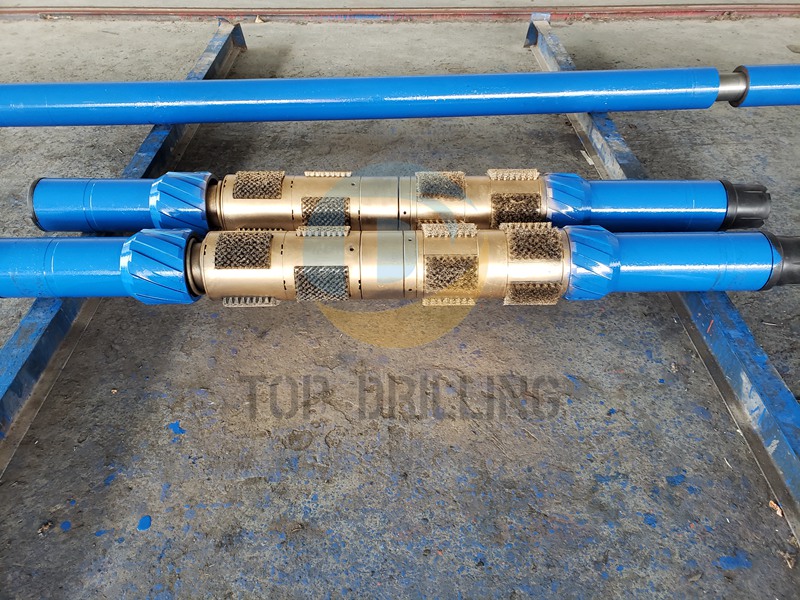

Casing Scraper Type GGQM

Model “GGQM” Casing Scraper can be used with Model “GGQH/QC” Tool together. Up-down brush can wash and clean the inwall of scraped casing. The casing wall can be cleaned up again after scraping (GGQH). The down brush can used mianly in shallow hole; when reach to the deep hole, the down brush will be worn, and the up brush can extend out automatically for operation.

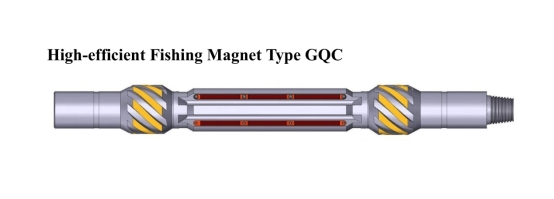

High-efficient Fishing Magnet Type GQC

Model GQC high-efficient fishing magnet is a fishing tool to recycle the scrap iron and dirt produced in petroleum, geological drilling, fixing casing pipes and cleaning operations. While the magnetic mince is adsorbed on the outer tube of the magnetic loop and the mince which can not be absorbed for the cycle will be deposited in the recycling bin and is taken out of the well. It has simple structure, convenient operation and reliable performance. It sucks up the smaller falling objects with the permanent magnet of itself to salvage the fallen objects effectively, so as to achieve the purpose of cleaning the bottom of the well.

Applicable Casing：4-1/2“，5”，7“，9-5/8”
