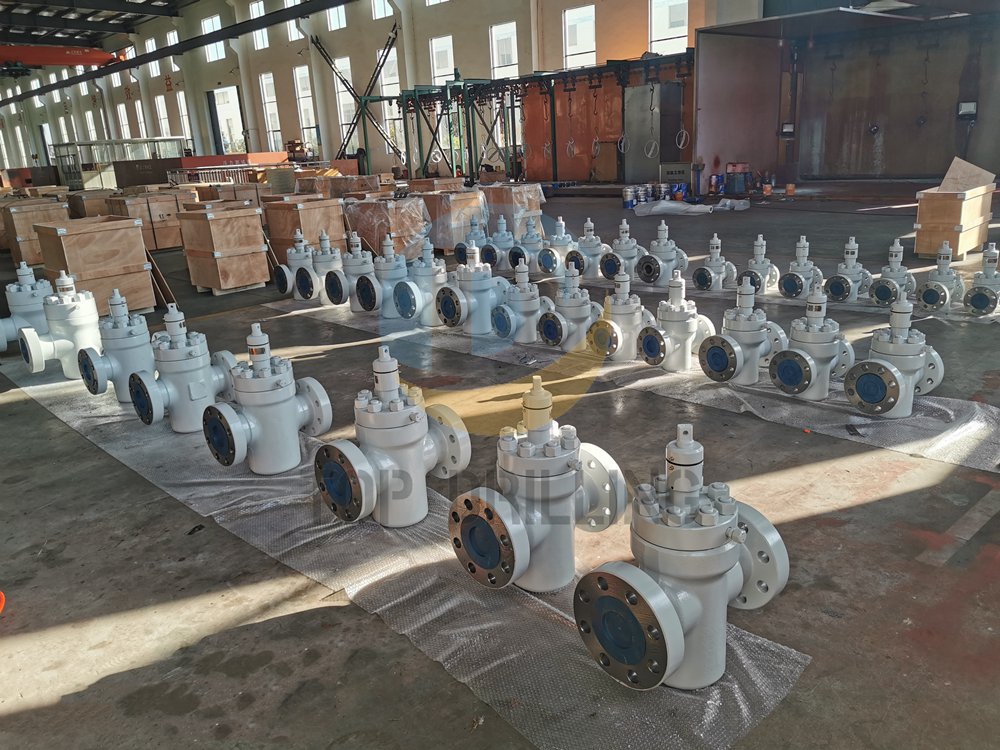

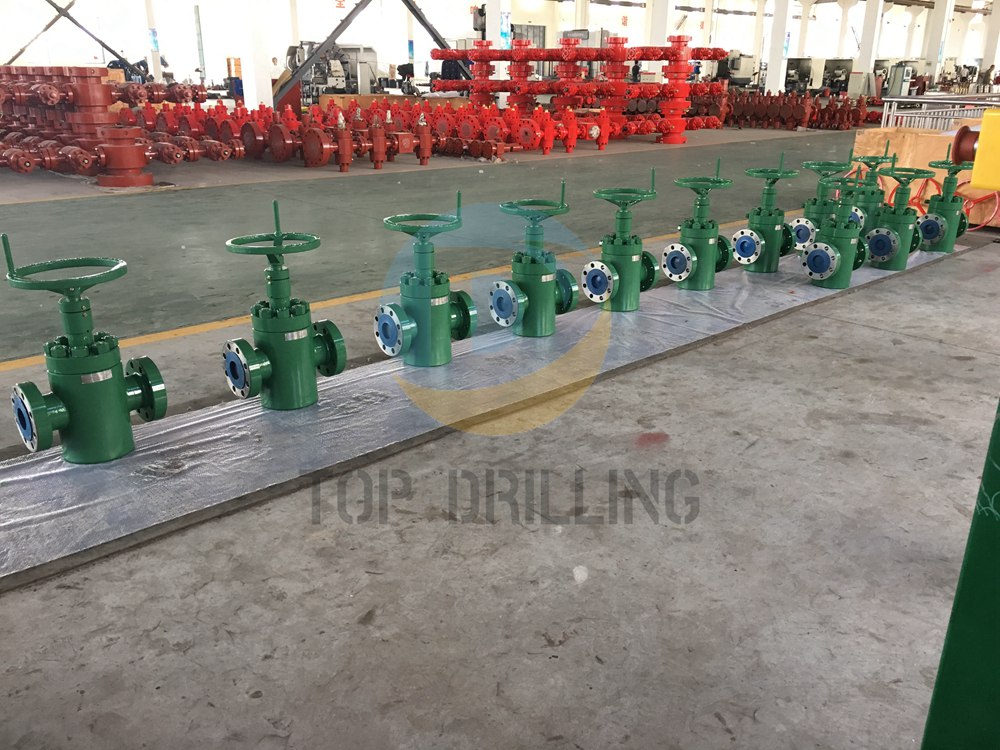

Gate valve

Gate valve is used to open or close the pipeline. According to the structure ,the gate valves is distributed into rising or non-rising stem gate valve. According to the mode of operation,it is distributed into manual or hydraulic etc. The gate valve is used for drilling fluid manifold, choke manifold , kill manifolds and christmas tree etc..

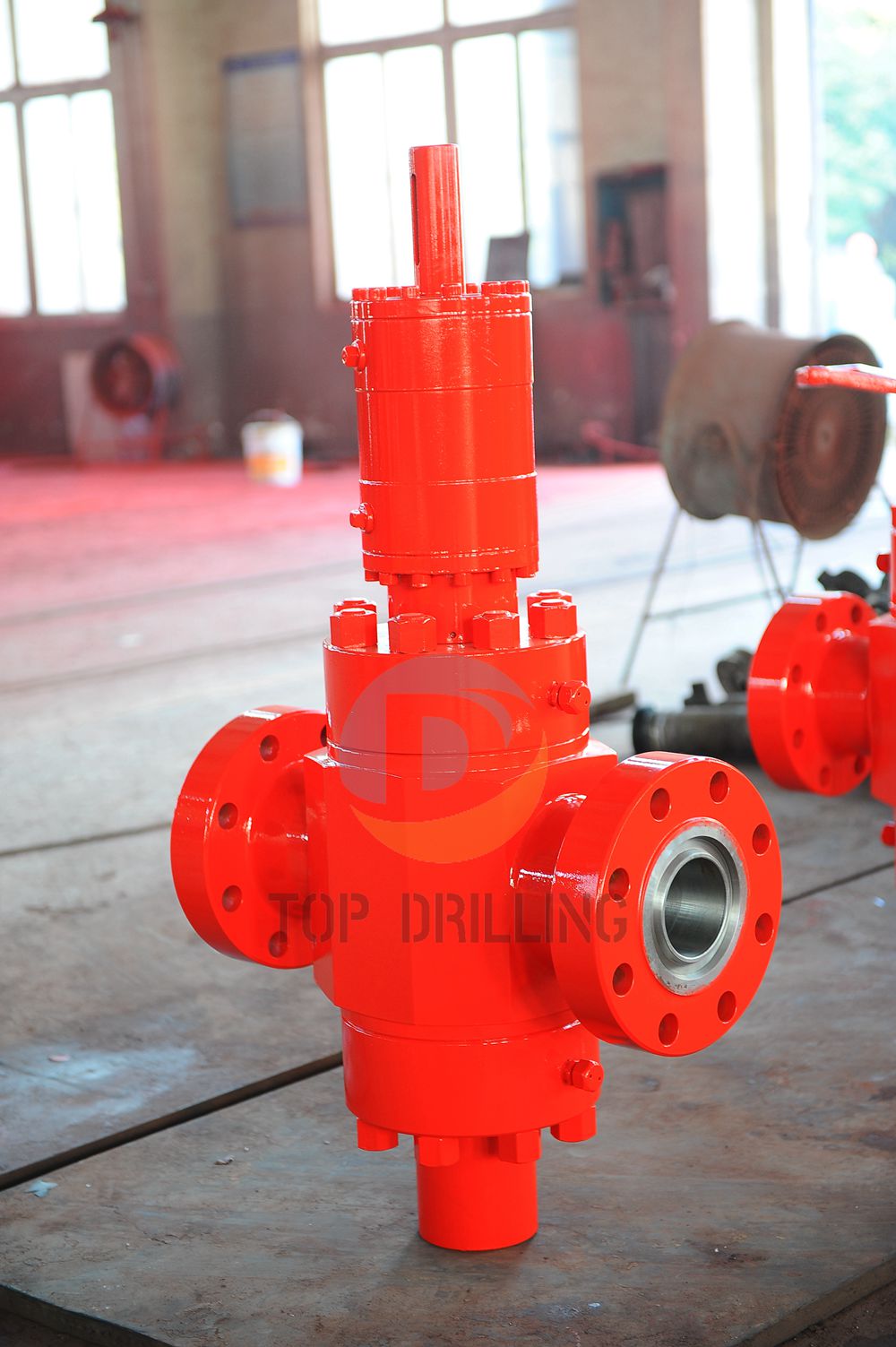

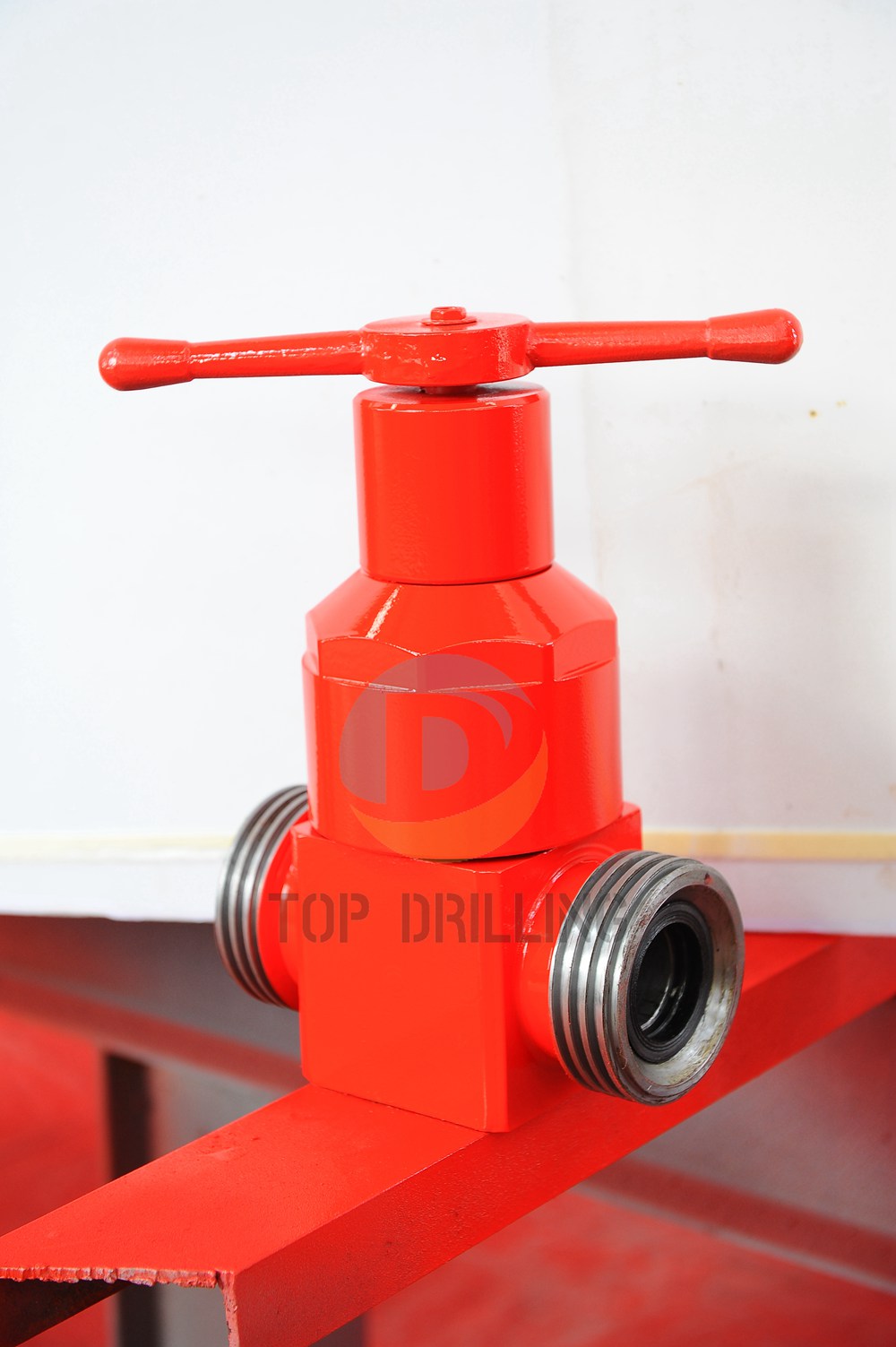

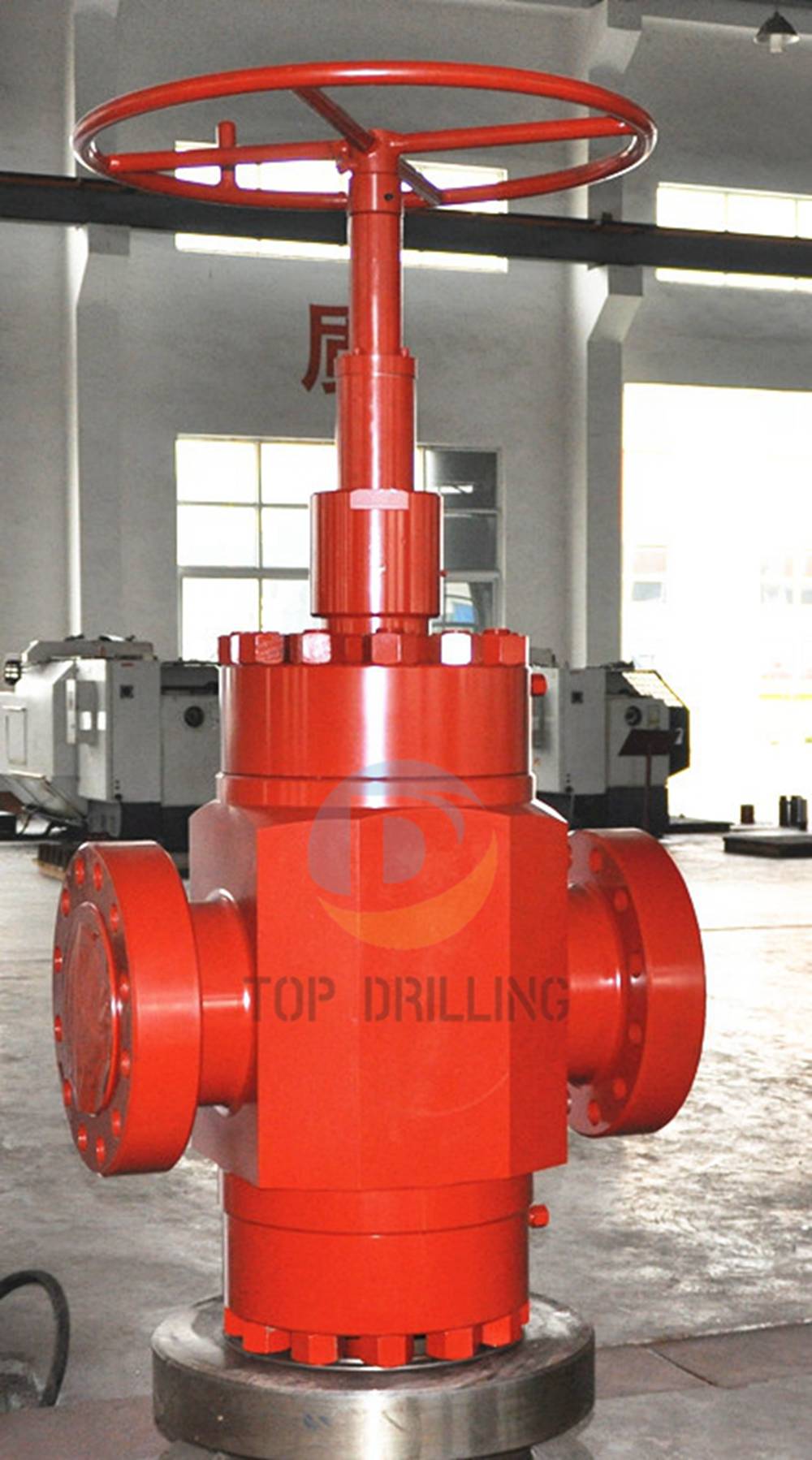

Type: FC/FLS Valves, Hydraulic Gate Valves, Manual Gate Valves, Electric Gate Valve.

Technical Parameters

Working Pressure： 21MPa~105MPa（3000~15000PSI）

Nominal Diameter： 52~103mm（2-1/16"～4 1/16"）

Temperature Level： -29℃~121℃（level P-U）

Manufacturing Standards：API 6A NACE MR0175
