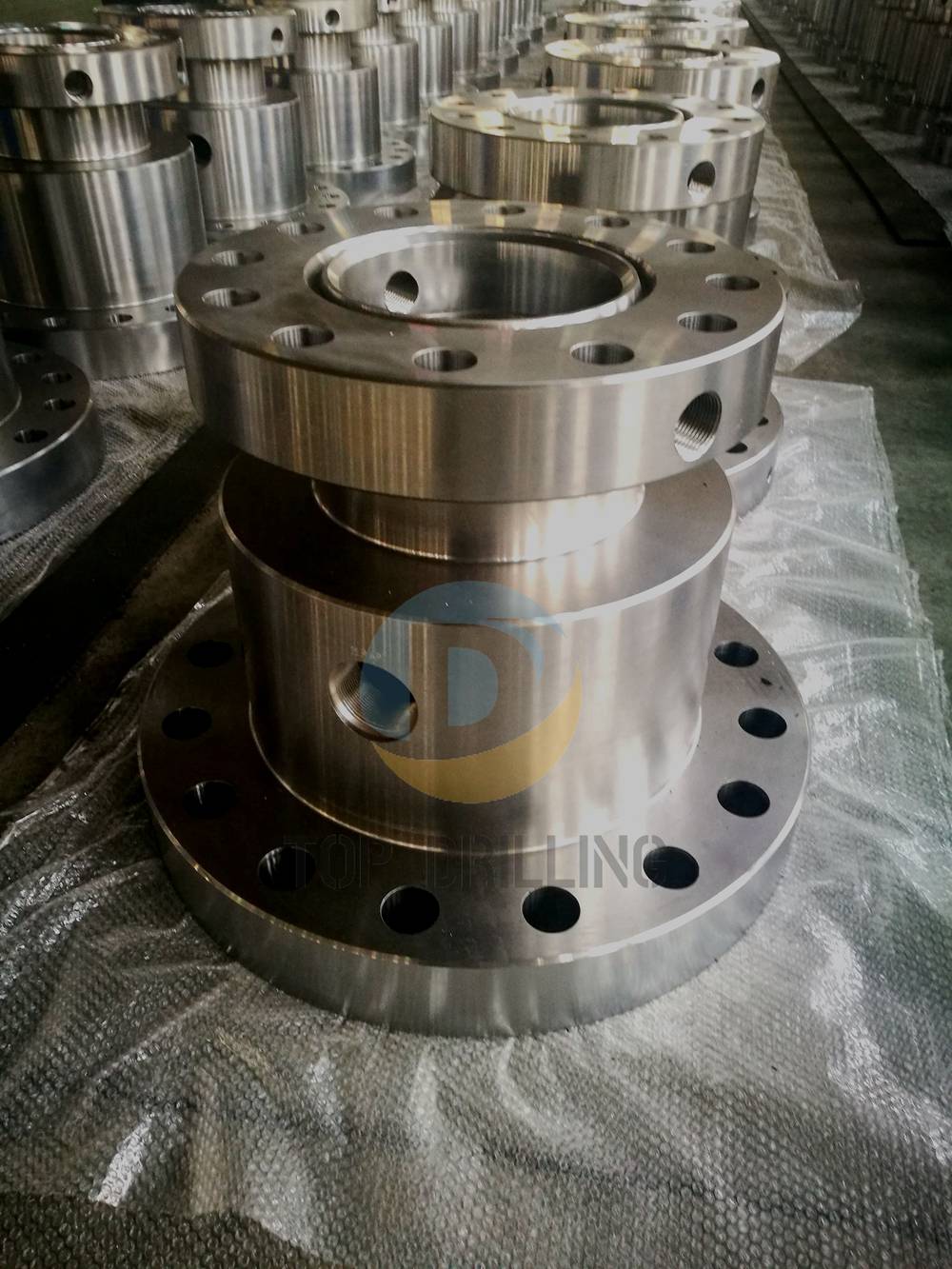

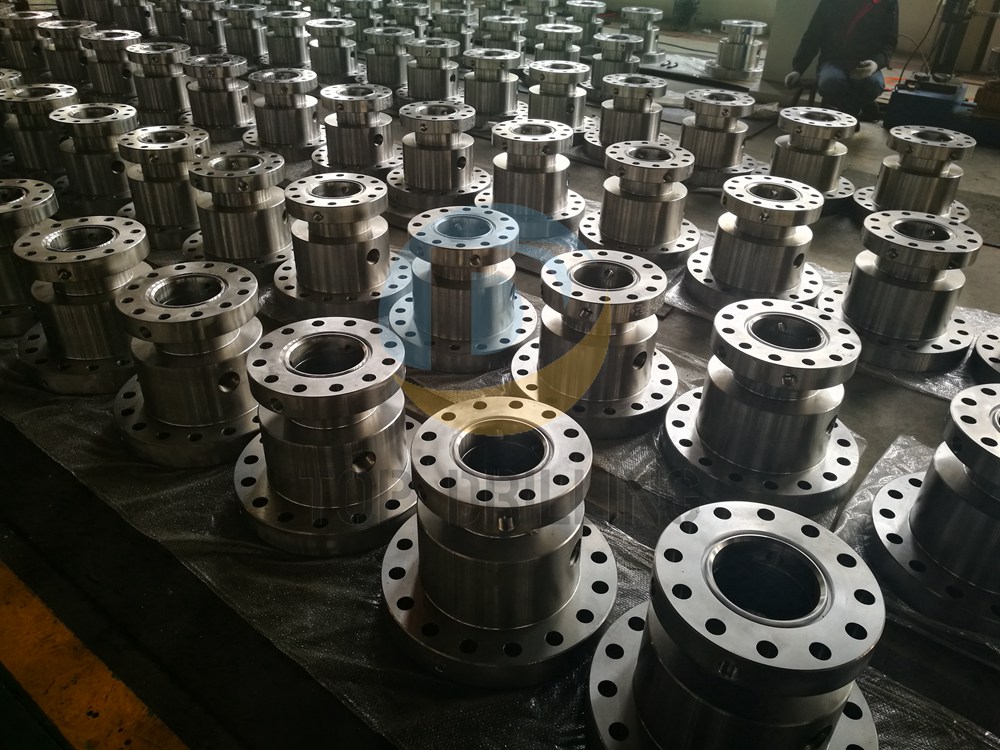

    Tubing head

    Tubing head is a spool with flanged top, flanged bottom and two side outlets. It also can be called tubing spool. Top flange is equipped with lock screws to fix tubing hanger.

    Standard

    API Spec 6A

    Rated Working Pressure

    2000psi-20000psi

    Nominal Bore

    7-1/16", 9", 11", 13-5/8"

    Connection Type

    API 6B or 6BX flanged top & bottom

    Material Class

    AA, BB, CC, DD, EE, FF

    Temp Class

    L, P, R, S, T, U, V

    Performance Requirement

    PR1-PR2

    Product Specification Level

    PSL 1-PSL4
