Fishing Jars: Added：2021-03-31; Views：次; Telephone：0086-15771936656; 0; Next Previous

Details

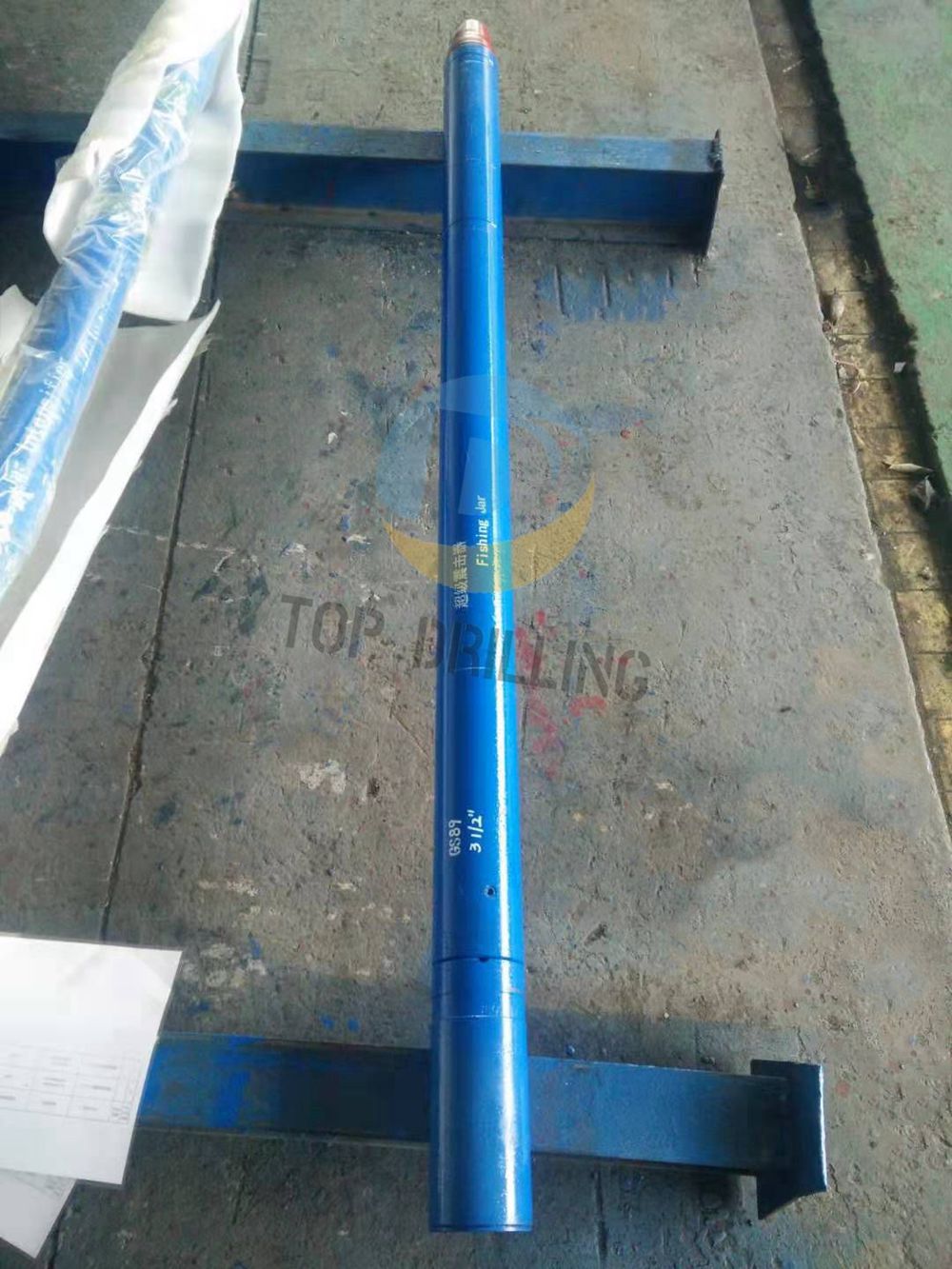

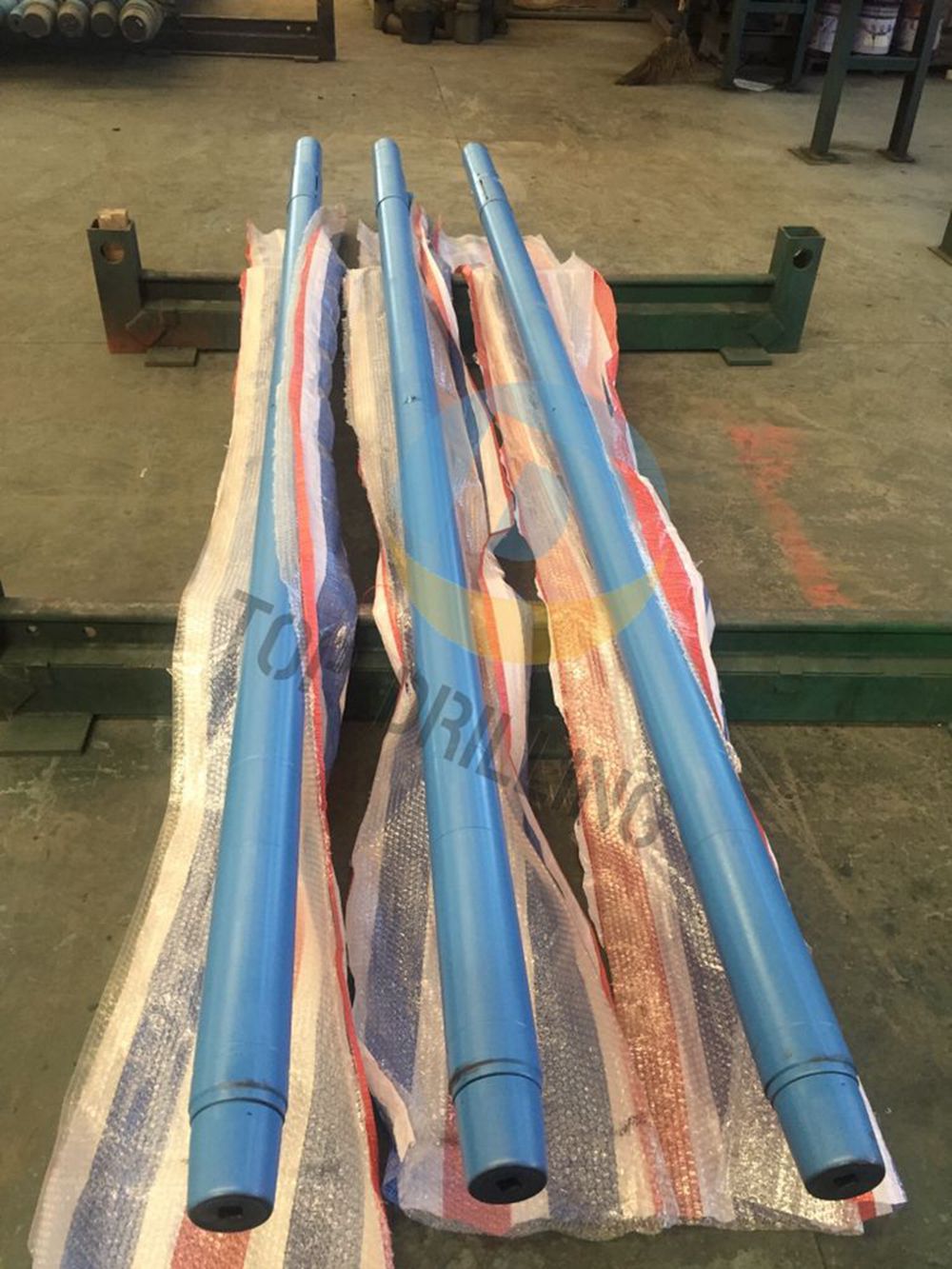

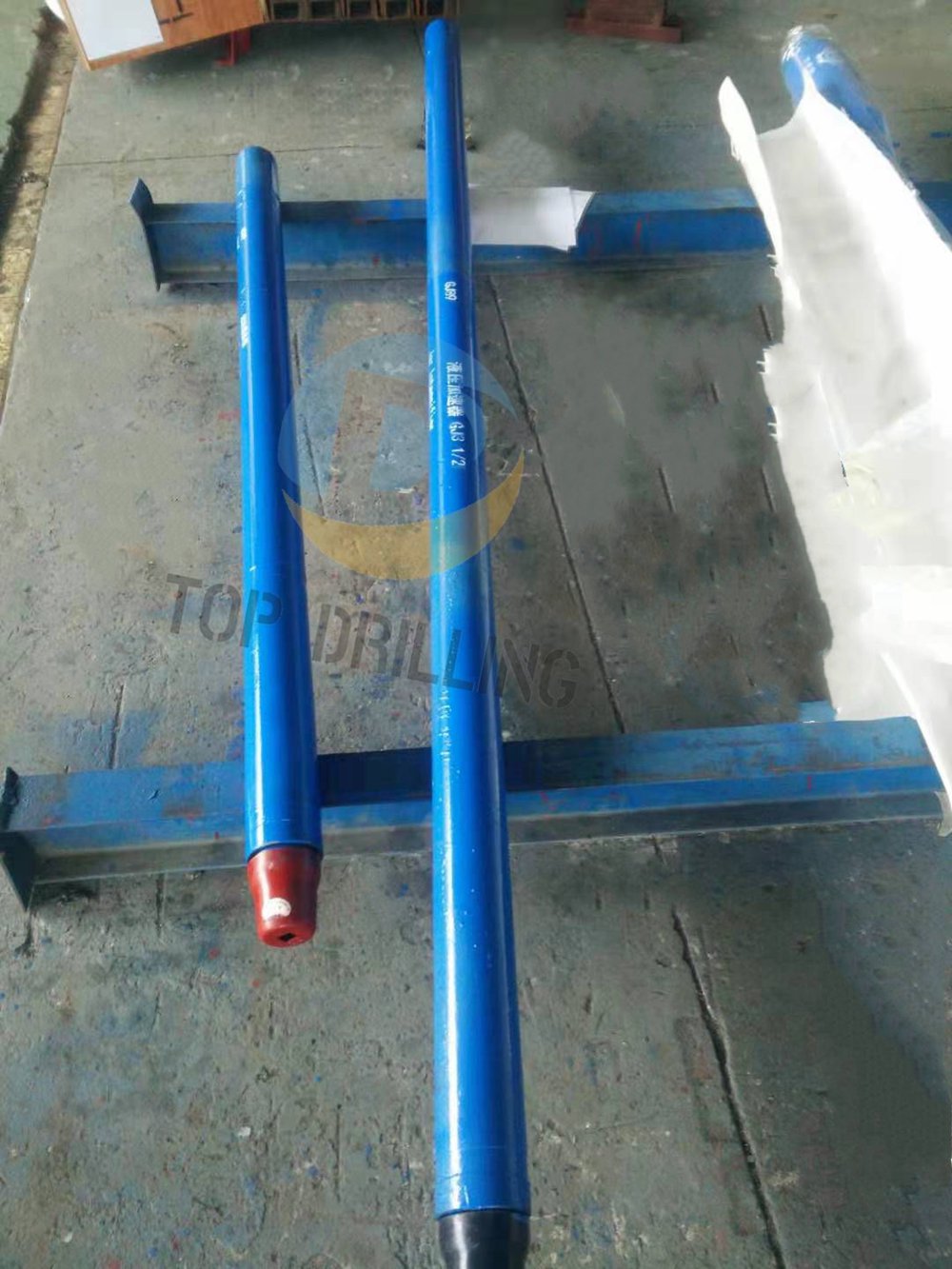

CSJ Super Fishing Jar

Specifications:

Model	CSJ36B	CSJ46B	CSJ62B	CSJ76B	CSJ80B	CSJ90B
OD (mm)	95	121	160	197	203	229
ID (mm)	28	45	57	71	71	76
Work Stroke (mm)	298	305	320	330	330	330
Tensile Load (kN)	500	980	1270	1870	2100	2200
Max.Tension Downhole (kN)	200	400	700	800	800	1000
Max. Work Torque (kN.m)	4	8	15	20	22	25
Sealing Pressure (Mpa)	30	30	30	30	30	30
Pull-Down Length (mm)	3875	4065	4410	4435	4435	4500
Max. Work Temperature (℃)	150	150	150	150	150	150
Connection	NC26	NC38	NC50	6 5/8 Reg	6 5/8 Reg	7 5/8 Reg

KXJ Fishing Bumper Sub

Specifications

Model	KXJ36B	KXJ46B	KXJ62B	KXJ76B	KXJ80B	KXJ90B
OD (mm)	95	121	159	197	203	229
ID (mm)	32	38	51	70	70	76
Sealing Pressure (Mpa)	30	30	30	30	30	30
Max. Tensile Load (kN)	500	1200	1430	1630	1630	2200
Max. Work Torque (kN.m)	4	8	13	20	20	25
Work Stroke (mm)	508	1000	1400	1500	1500	1500
Connection	NC26	NC38	NC50	6 5/8 Reg	6 5/8 Reg	7 5/8 Reg
Closed Length	1410	2110	2604	2730	2730	2760

Jar Intensifier Type YJQ

Specifications

Model	YJQ44	YJQ46Ⅱ	YJQ62	YJQ76	YJQ80	YJQ90
OD (mm)	114	121	159	197	203	229
ID (mm)	38	38	57	76	76	76
Max. pulling load KN(lb)	250～300 (54000~67000)	300～350 (67000~79000)	600~700 (135000~157000)	900~1000 (202000~225000)	900~1000 (202000~225000)	1100-1200 (247000~270000)
Max. Stroke Mm (in)	216 (8 1/2)	234 (9 1/5)	337 (13 ¼)	341 (13 7/16)	341 (13 7/16)	330 (13)
Connection	NC31	NC38	NC50	6 5/8 Reg	6 5/8 Reg	7 5/8 Reg
Max working Load kN(lb)	800 (180000)	1100 (247000)	1600 (360000)	2650 (600000)	2800 (630000)	3000 (670000)
Tensile Yield Strength kN(lb)	1350 (303000)	1700 (380000)	3600 (800000)	4000 (900000)	4900 (1100000)	8000 (1800000)
