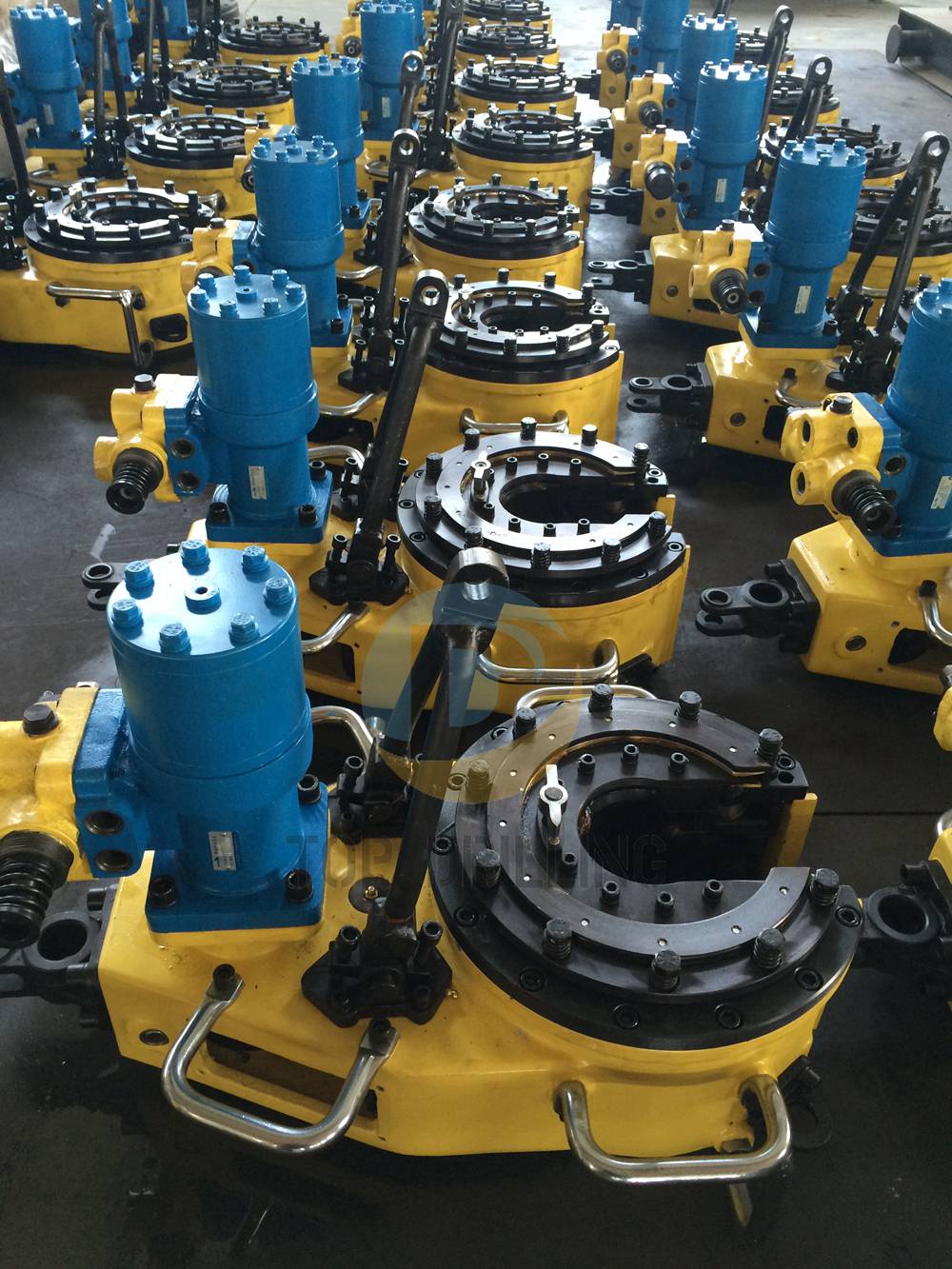

XQ Power Tong
This XQ series power tong is used for quick make-up/break-out 2 7/8”, 3 1/2”, 4 1/2”tubing, 4 1/2”, 5 1/2”casing, 2 3/8”, 27/8”, 3 1/2”drill pipe in well service operations. The tongs have the following features:
1. Clamp the tubing use corresponding dies, special die seat and dies can be custom-made.
2. Torque control valves may be equipped (optional).
3. Choose and buy lengthening guide ole assembly, the backup tong can clamp the tubing body.
4. Torque Control System may be equipped (optional).
Main Technical Parameters
Model | XQ89/3YC | XQ114/6YB | XQ140/12Y | XQ140/20Y |
Applicable Range Main Tong | mm | 60~89 | 60~114 | 73~140 | 60~140 |
in | 2-3/8~3-1/2 | 2-3/8~4-1/2 | 2-7/8~5-1/2 | 2-3/8~5-1/2 |
Applicable Range Backup Tong | mm | 60~114 | 73~141.5 | 89~156 | 60~153.7 |
in | 2-3/8~4-1/2 | 2-7/8~5-1/8 | 3-1/2~6-1/8 | 2-3/8~6.05 |
Max. Torque | kN.m | 3.3 | 6 | 12 | 20 |
Ft.lbf | 2213 | 4425 | 8850 | 15000 |
Speed | rpm | 30~90 | 20~85 | 14~72 | 13.5~58 |
Pressure Rating | MPa | 10 | 11 | 12 | 17.5 |
PSI | 1450 | 1595 | 1740 | 2500 |
Flow Rating | L/min | 80 | 100 | 120 | 140 |
gpm | 21 | 26 | 32 | 38 |
Shape Size | mm | 650x430x550 | 750x500x600 | 1024x582x540 | 1115x960x1670 |
Weight | kg | 160 | 220 | 480 | 840 |
