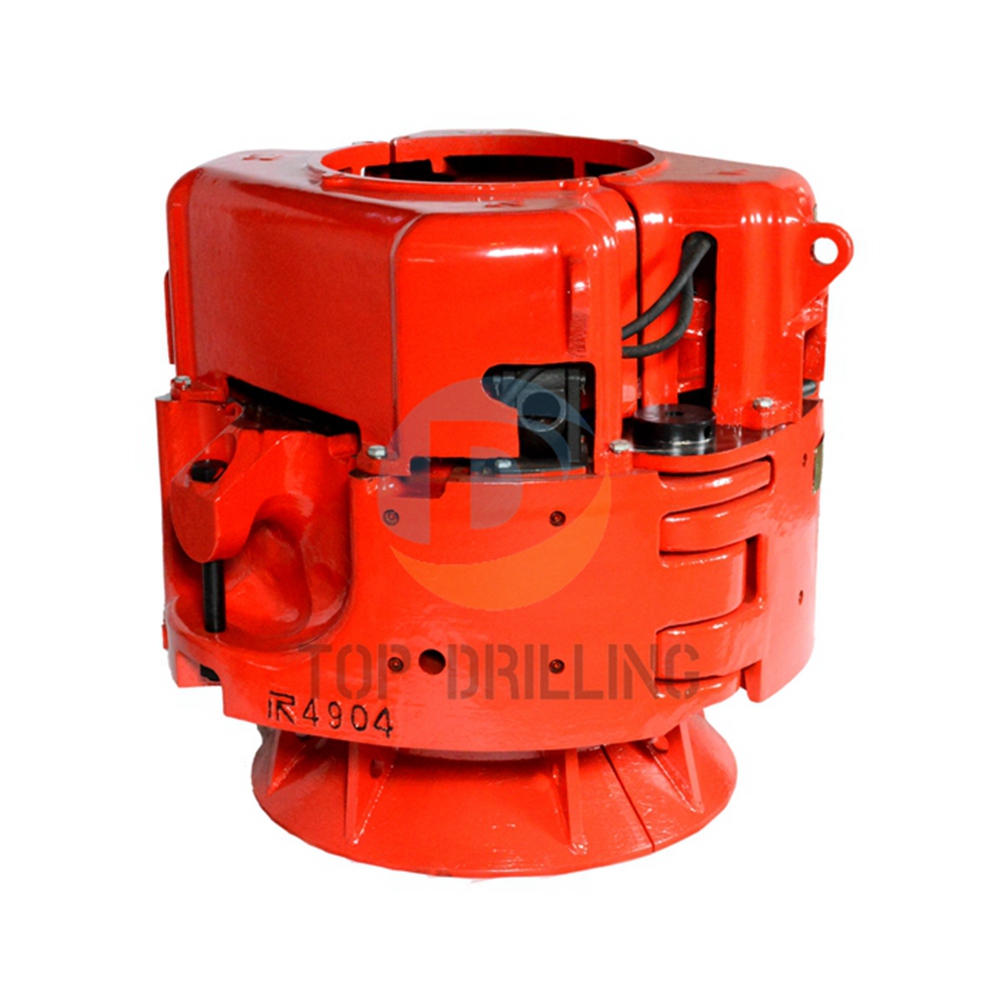

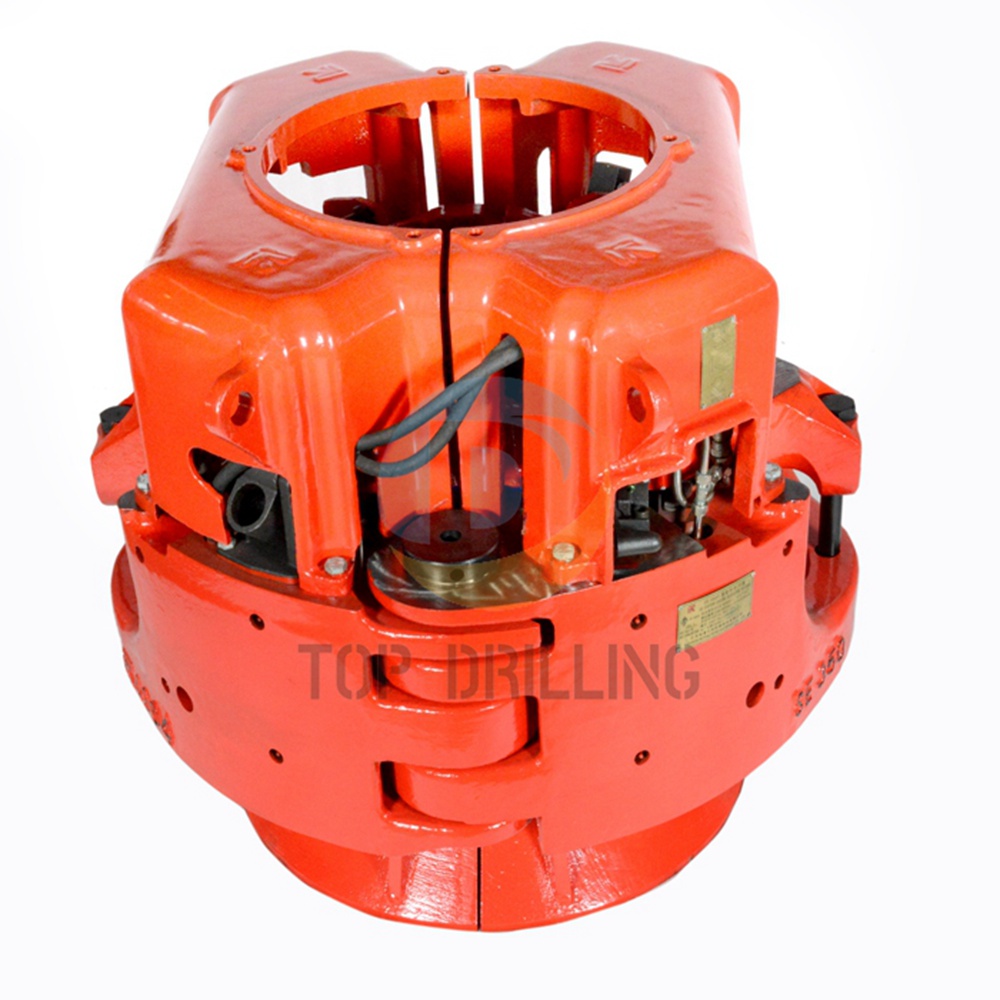

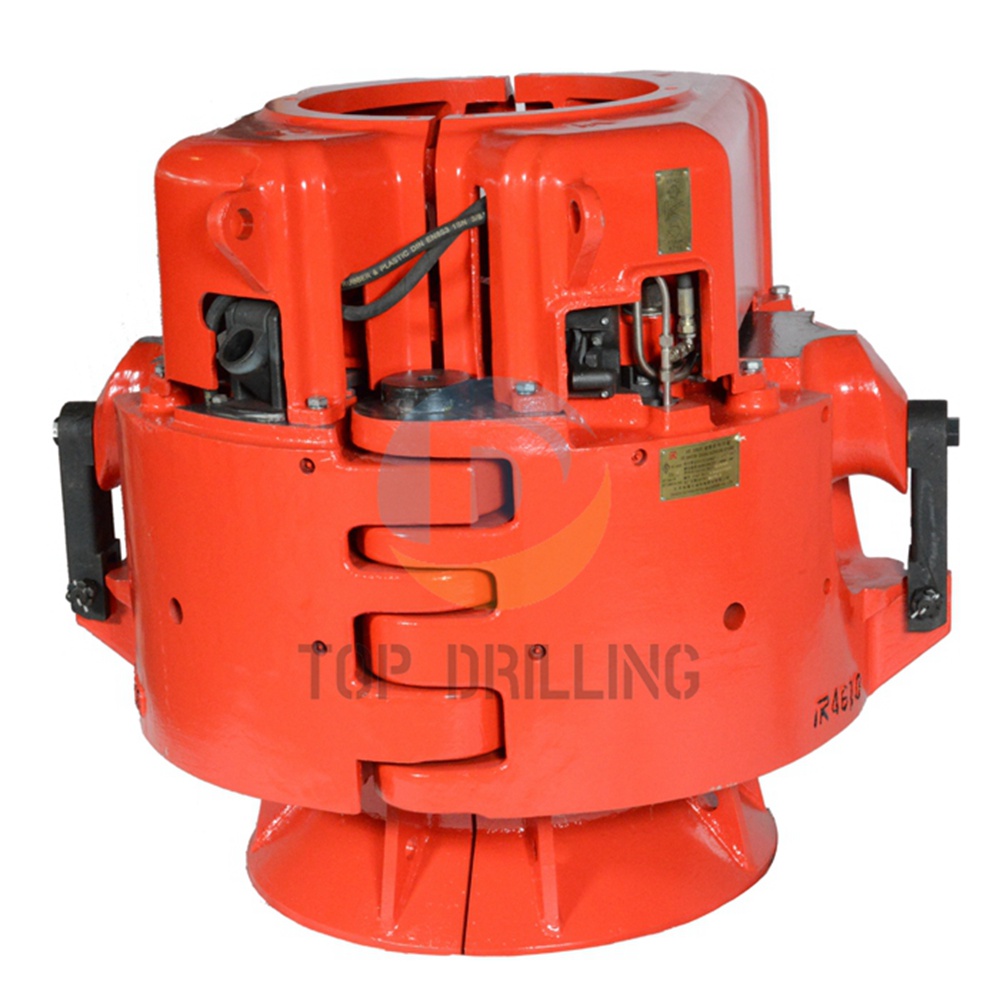

Elevator/Spider
Slip Type Elevator/Spider are mechanized tools with air operating. They can handle casings up to 24-1/2inch. They are easy to operate and dependable enough. Also they can reduce workload. They are designed and manufactured according to API SPEC 7K Specification for drilling and well servicing equipment.
Main Technical Parameters
Model | Applicable Diameter of Tubulars
(in) | Rated Capacity
(Shot tons) | Work Pressure
(MPa) | MAX. Pressure
(MPa) |
SE150 | 2-3/8~5-1/2 | 150 | 0.6~0.8 | 1 |
SE350(14) | 4~14 | 350 | 0.6~0.8 | 1 |
SE350(20) | 16~20 | 351 | 0.6~0.8 | 1 |
SE500(14) | 4~14 | 500 | 0.6~0.8 | 1 |
SE500(24-1/2) | 16~24-1/2 | 501 | 0.6~0.8 | 1 |
SE750 | 4-1/2~14 | 750 | 0.6~0.8 | 1 |
SEB350 | 4-1/2~13-3/8 | 350 | 0.6~0.8 | 1 |
