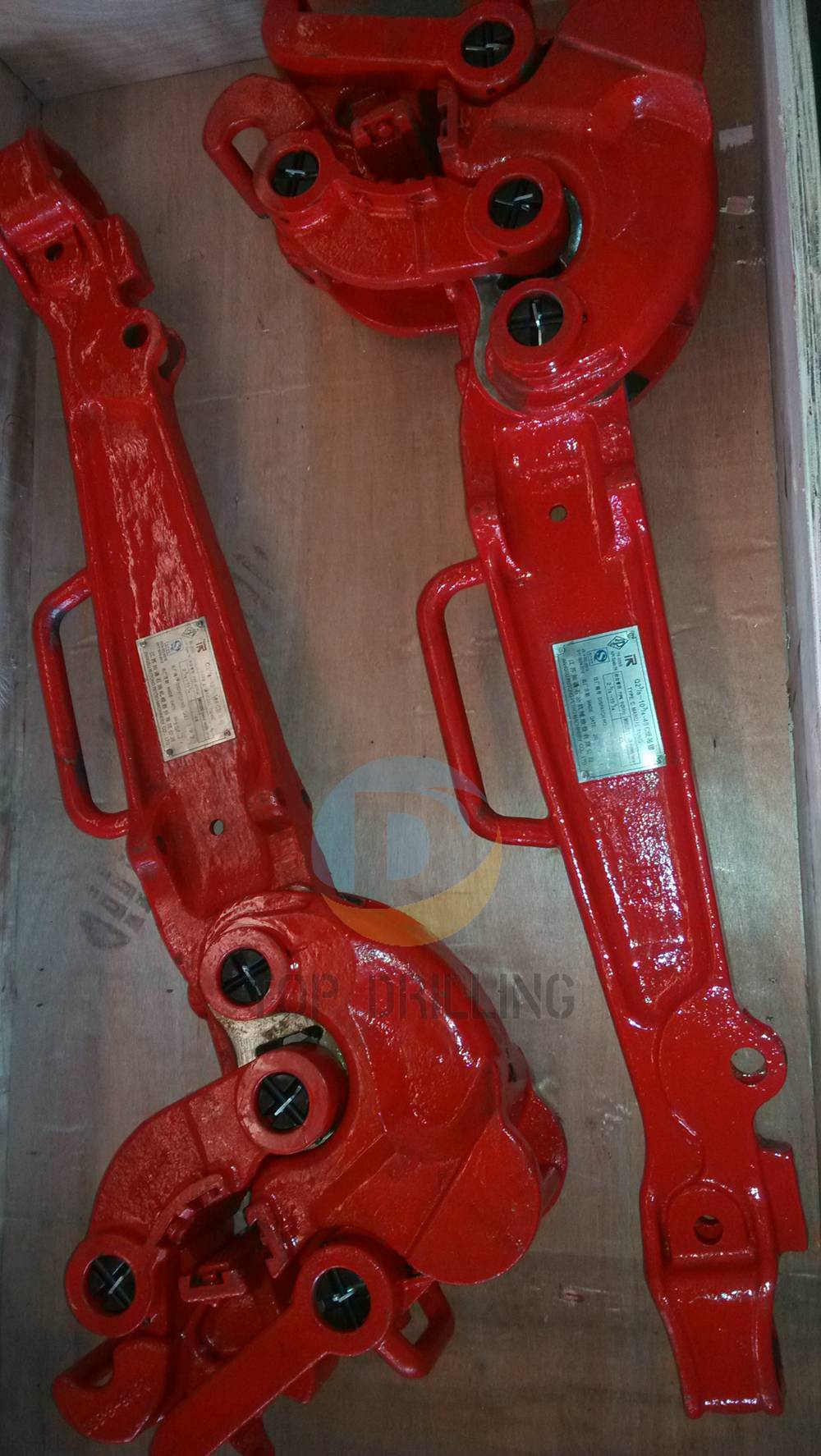

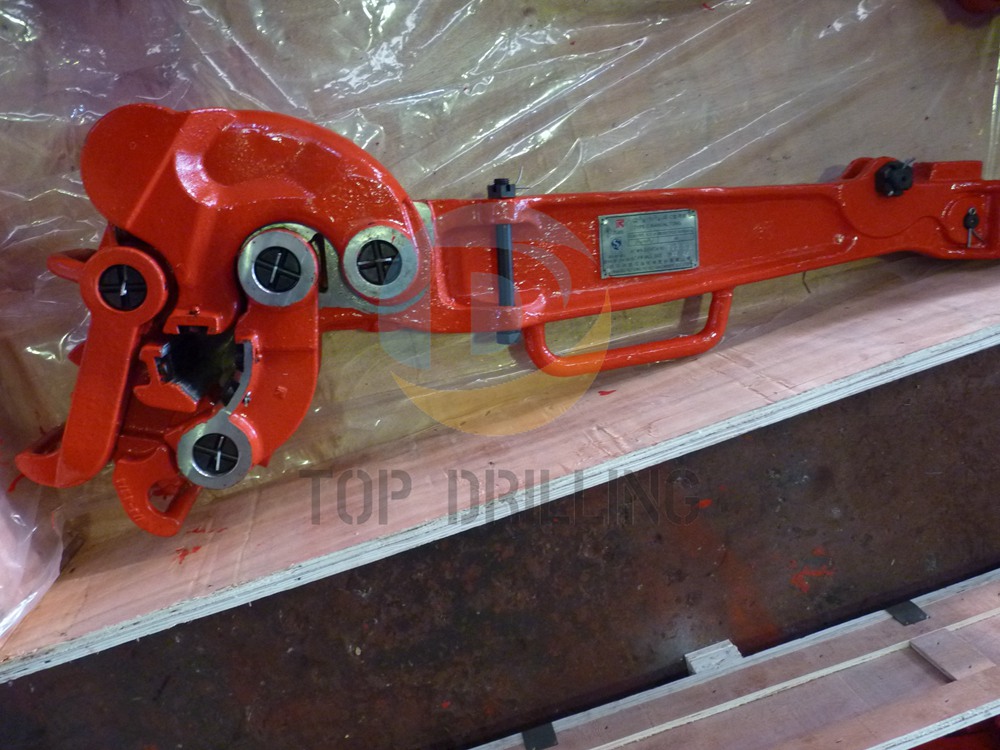

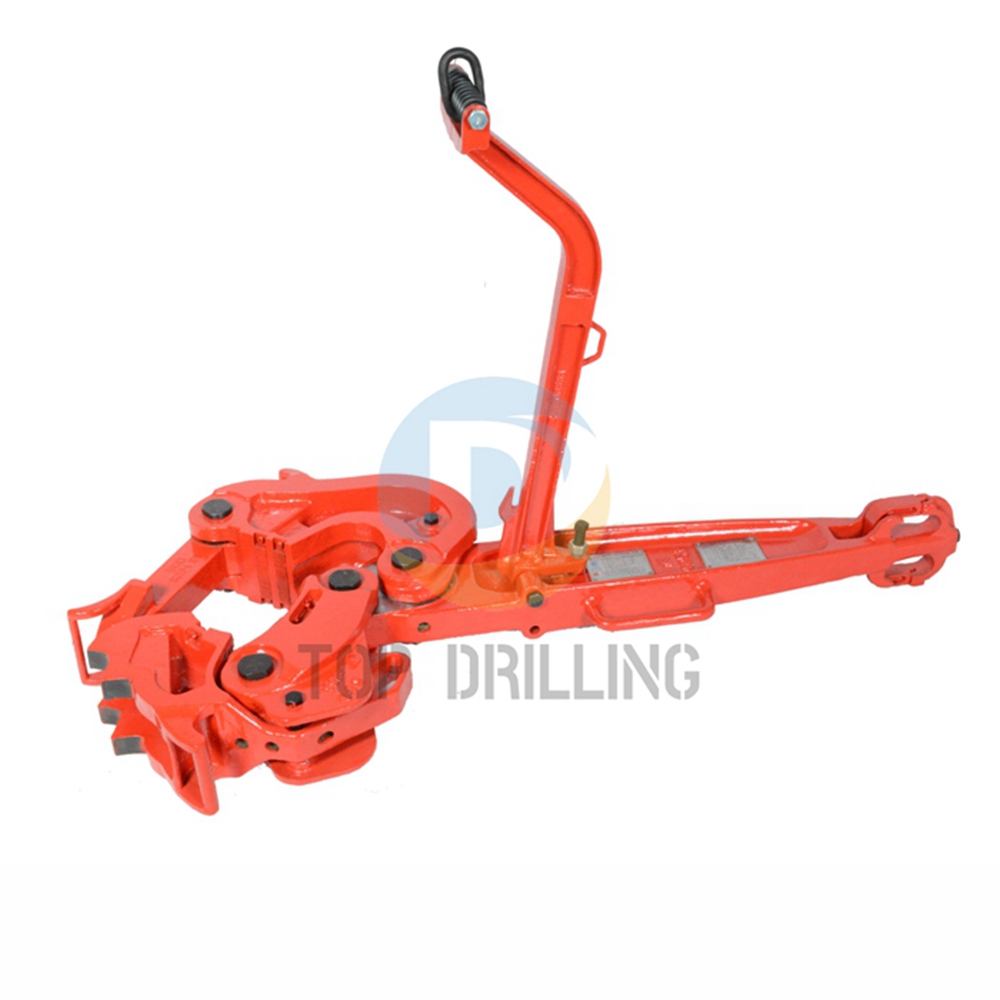

    Manual Tongs Type C

    Manual Tongs are necessary tools applied to make up and break out pipes. Changing lug jaws and latch steps can adjust different handling sizes of the tongs. They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.

    Main Technical Parameters

    No.of Latch Lug jaw

    No.of Short jaw

    No.of Hinge jaw

    Size Range

    Rated Torque
    (kN.m)

    in

    mm

    1#

    1#

    /

    2-3/8~3.668

    60.3~93.17

    48

    2#

    1#

    /

    2-7/8~4-1/4

    73~108

    3#

    1#

    /

    3-1/2~5-1/4

    88.9~133.3

    4#

    1#

    /

    5-1/2~7

    139.7~177.8

    5#

    2#

    1#

    7~8-5/8

    177.8~219.08

    6#

    2#

    2#

    9-5/8~10-3/4

    244.5~273.05
