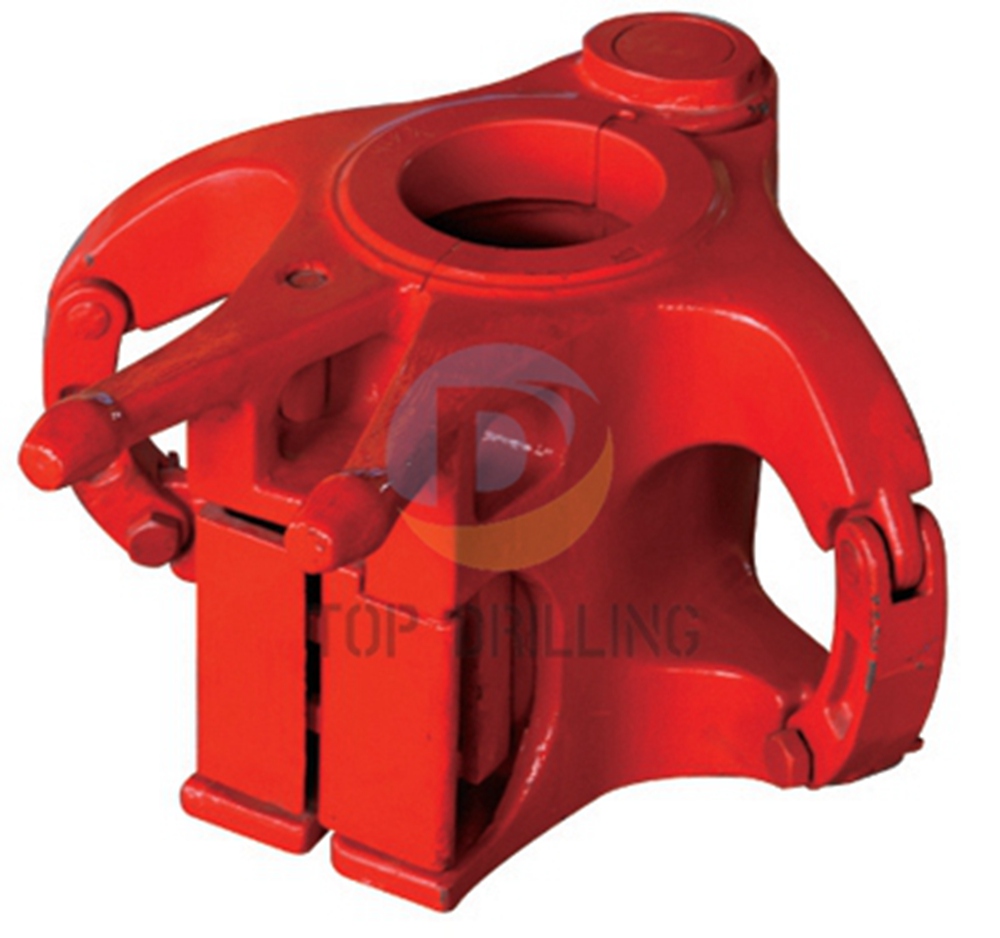

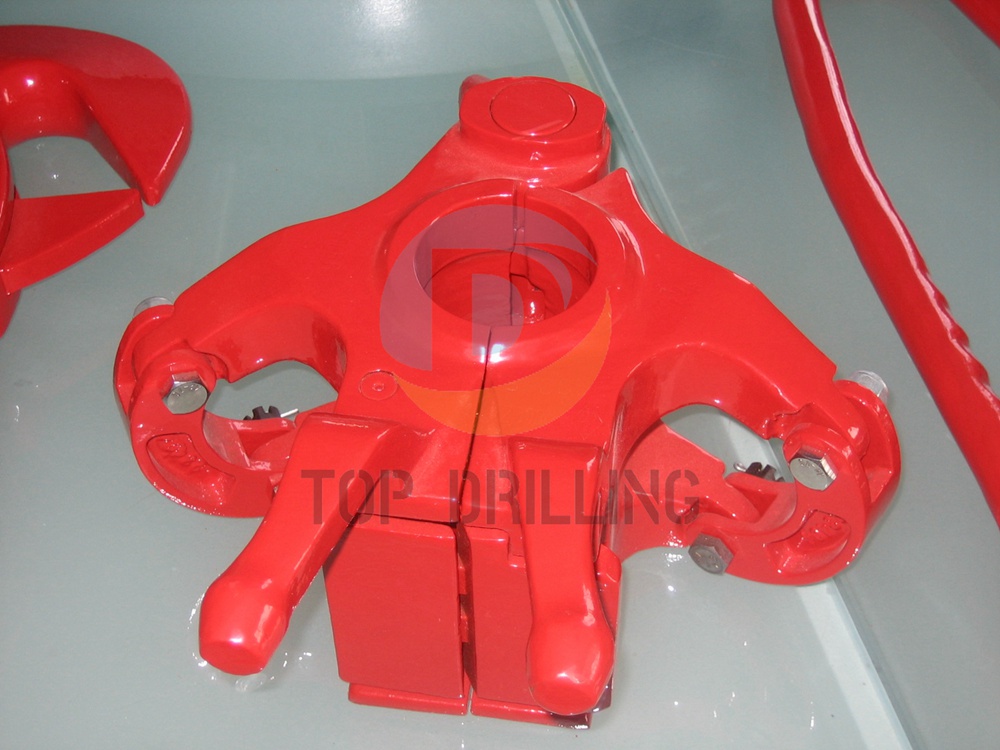

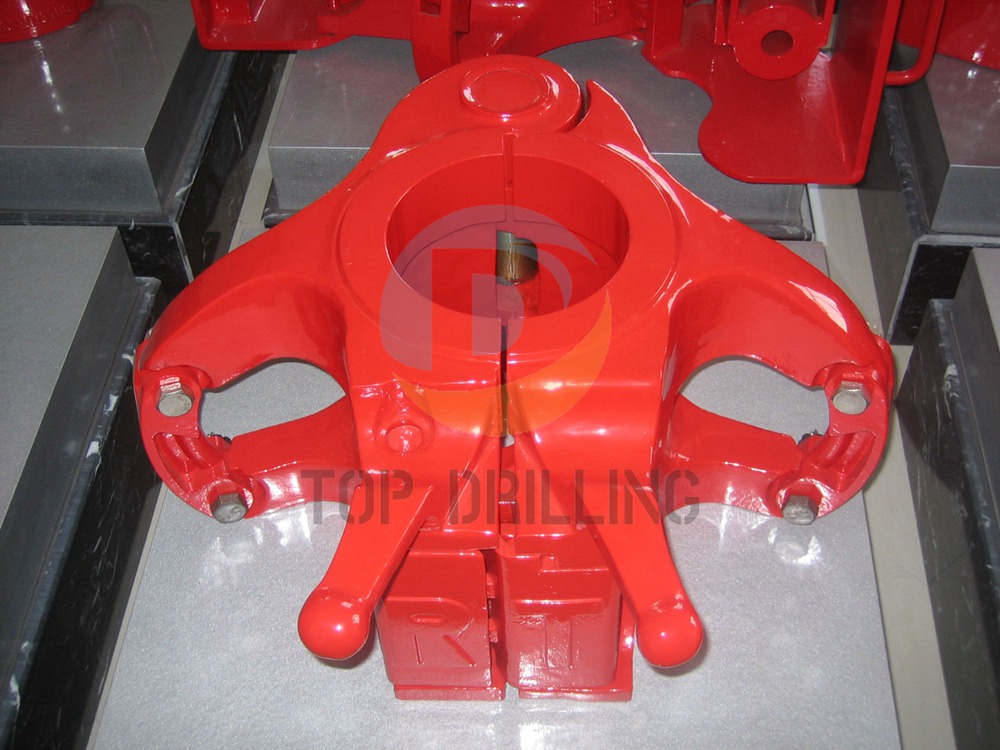

    TA Elevator

    Model TA center latch elevator with square shoulder are suitable for handling drill pipe, drill collar, casing and tubing. The products shall be designed and manufactured according to API Spec 8A/8C specification for drilling and production hoisting equipment

    Main Technical Parameters

    Model

    Size(in)

    Rated Capacity
    (Shot tons)

    DC

    Tubing

    Casing

    NU

    EU

    TA-35

    2-7/8~3-1/8

    1.05~2-7/8

    1.05~2-7/8

    /

    35

    TA-65

    2-7/8~3-1/8

    1.66~2-7/8

    1.66~2-7/8

    /

    65

    TA-100

    3-1/8~5-1/4

    2-3/8~5

    2-3/8~4-1/2

    /

    100

    TA-125

    3-1/8~5-1/4

    2-3/8~5

    2-3/8~4-1/2


    125

    TA-150

    4-1/8~11-1/4

    /

    /

    4-1/2~10-3/4

    150
