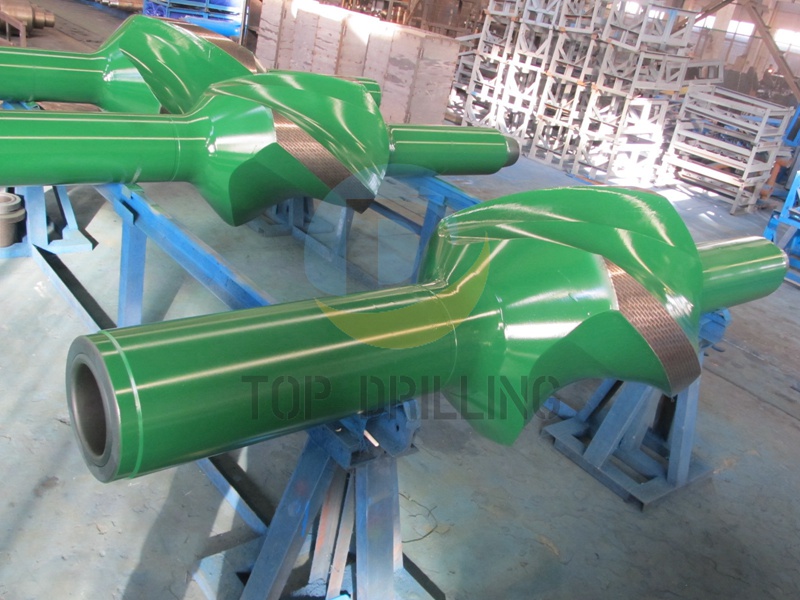

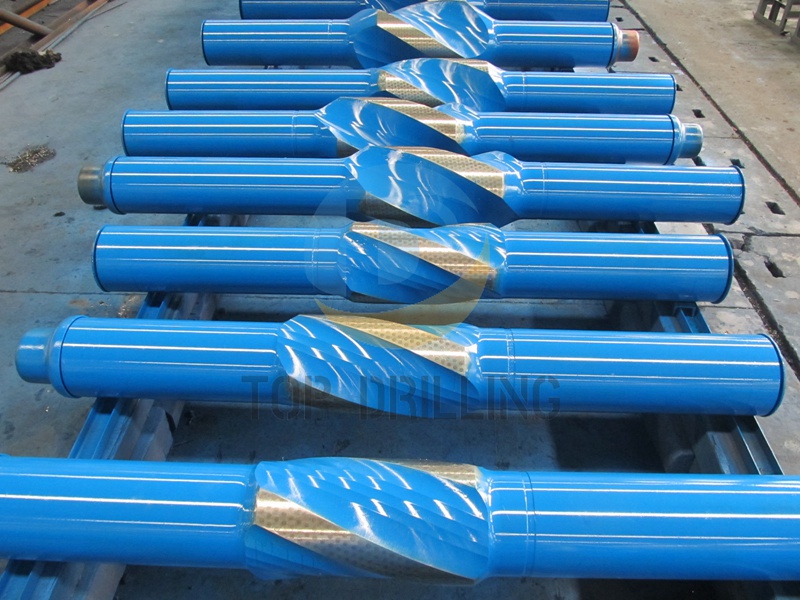

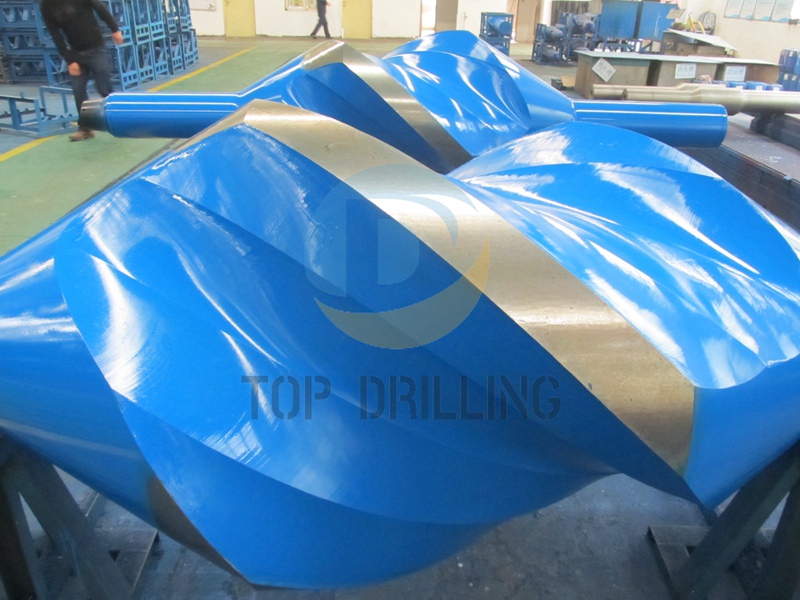

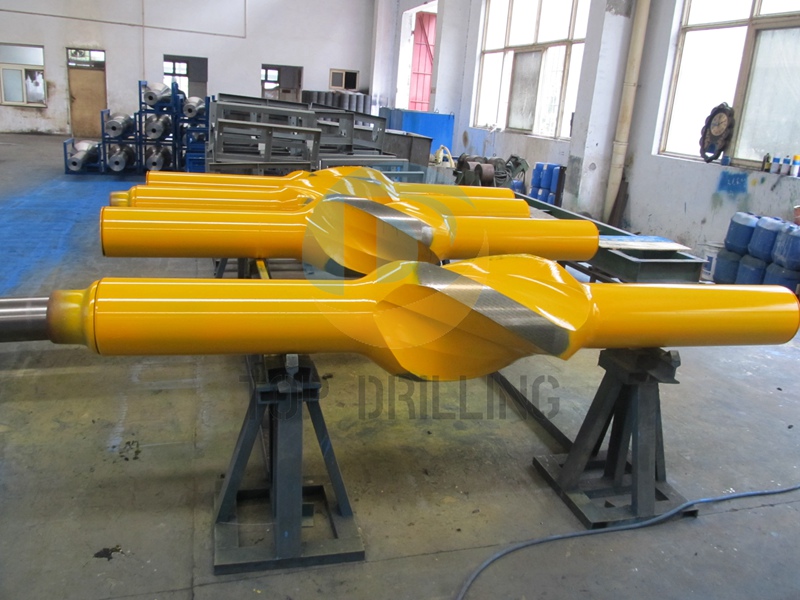

Integral Blade Stabilizer
1. Size: 6”-.42”
2. Optional : Integral Blade Stabilizer
Non-magnetic Stabilizer
Replaceable Sleeve Stabilizer
Spherical Stabilizer
Stabilizer Forging
3. Material: AISI4145H MOD, AISI4330V, Non-magnetic
4. Hard Facing: HF1000, HF2000, HF3000, HF4000, HF5000
5. Manufacturing Standard: API Spec. 7-1, NS-1, DS-1 or Customer requirements.
Main Technical Parameters
Size | Connection | Fishing Neck | Overall Length | Fishing Neck Length | Blade Length | Blade Width |
(in) | (in) | (in) | (in) | (in) | (in) | (in) |
42 | 8-5/8REG | 11 | 110-120 | 32 | 24 | 4 |
36 | 7-5/8REG | 9.5 | 105-115 | 30 | 22 | 4 |
26 | 7-5/8REG | 9.5 | 95-105 | 30 | 20 | 4 |
17 1/2 | 7-5/8REG | 9.5 | 85-95 | 30 | 18 | 3.5 |
12 1/4 | 6-5/8REG | 8 | 85-95 | 30 | 18 | 3 |
8 1/2 | 4 1/2IF | 6 3/4 | 68-75 | 28 | 16 | 2.5 |
6 | 3-1/2IF | 4 3/4 | 58-70 | 28 | 16 | 2 |
