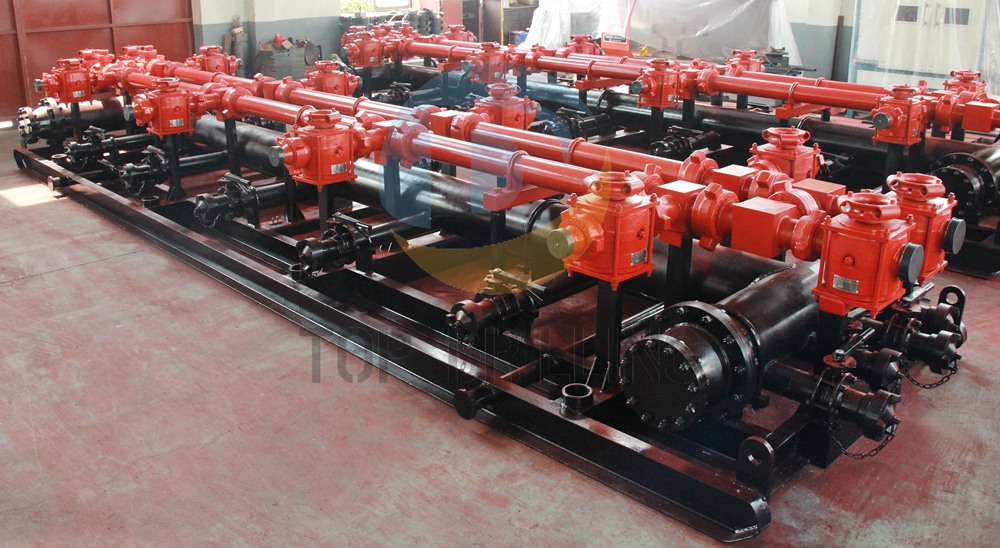

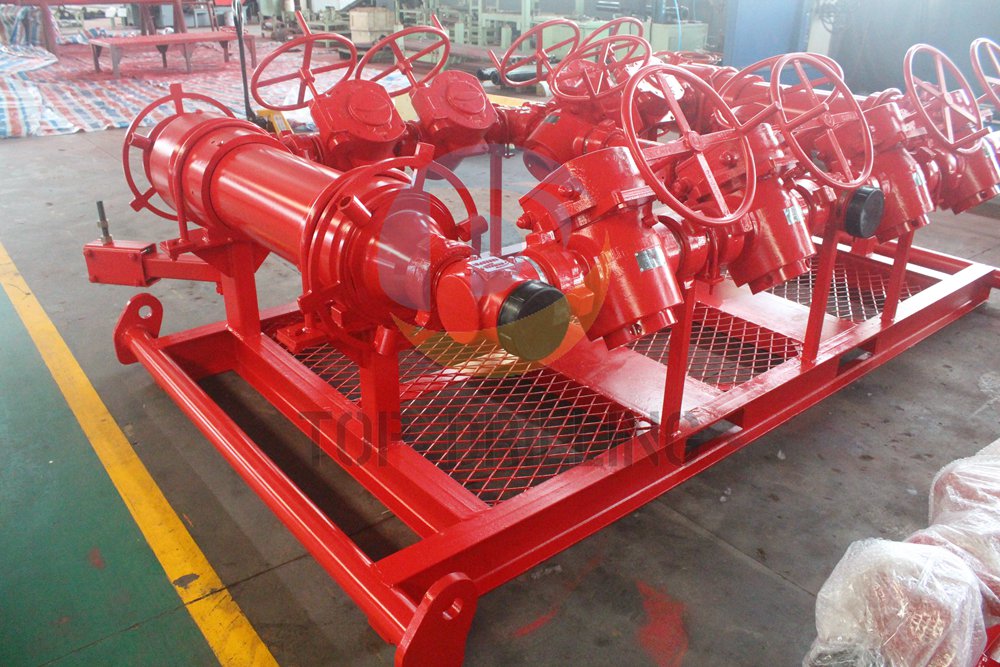

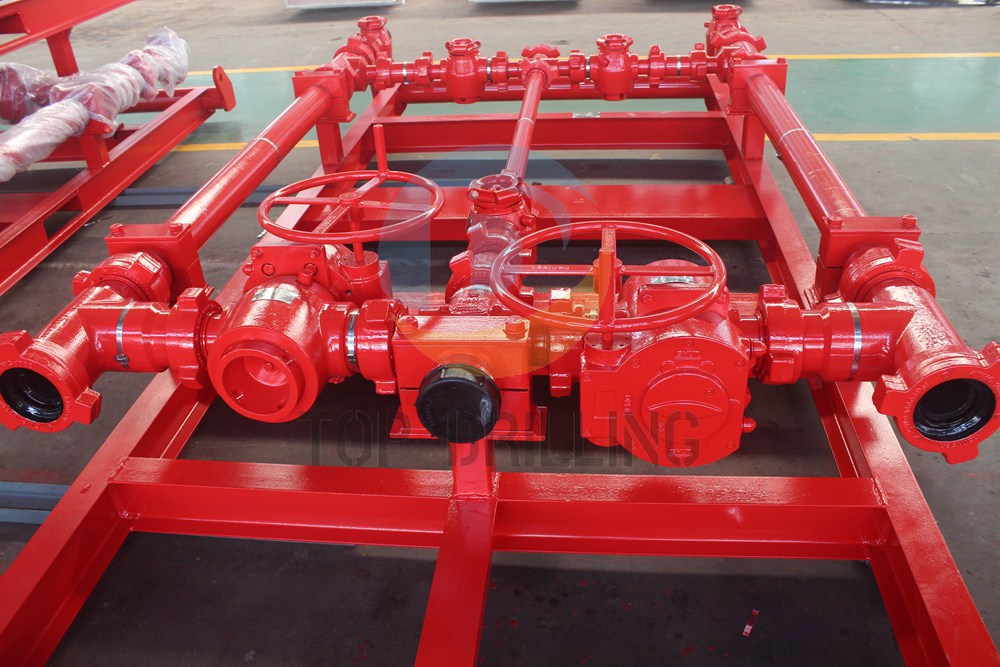

Fracture Manifolds

Fracture manifold is used to fracture operation, including pump discharge manifold, high and low pressure combination manifold, surface pipeline and wellhead protector etc.

Technical Parameters

Working Pressure for high pressure parts： 35～140MPa (5000psi～20000psi)

Nominal Diameter for high pressure parts： 50~102mm(2"~4")

Nominal Diameter for low pressure parts： 203~305mm(8"~12")
