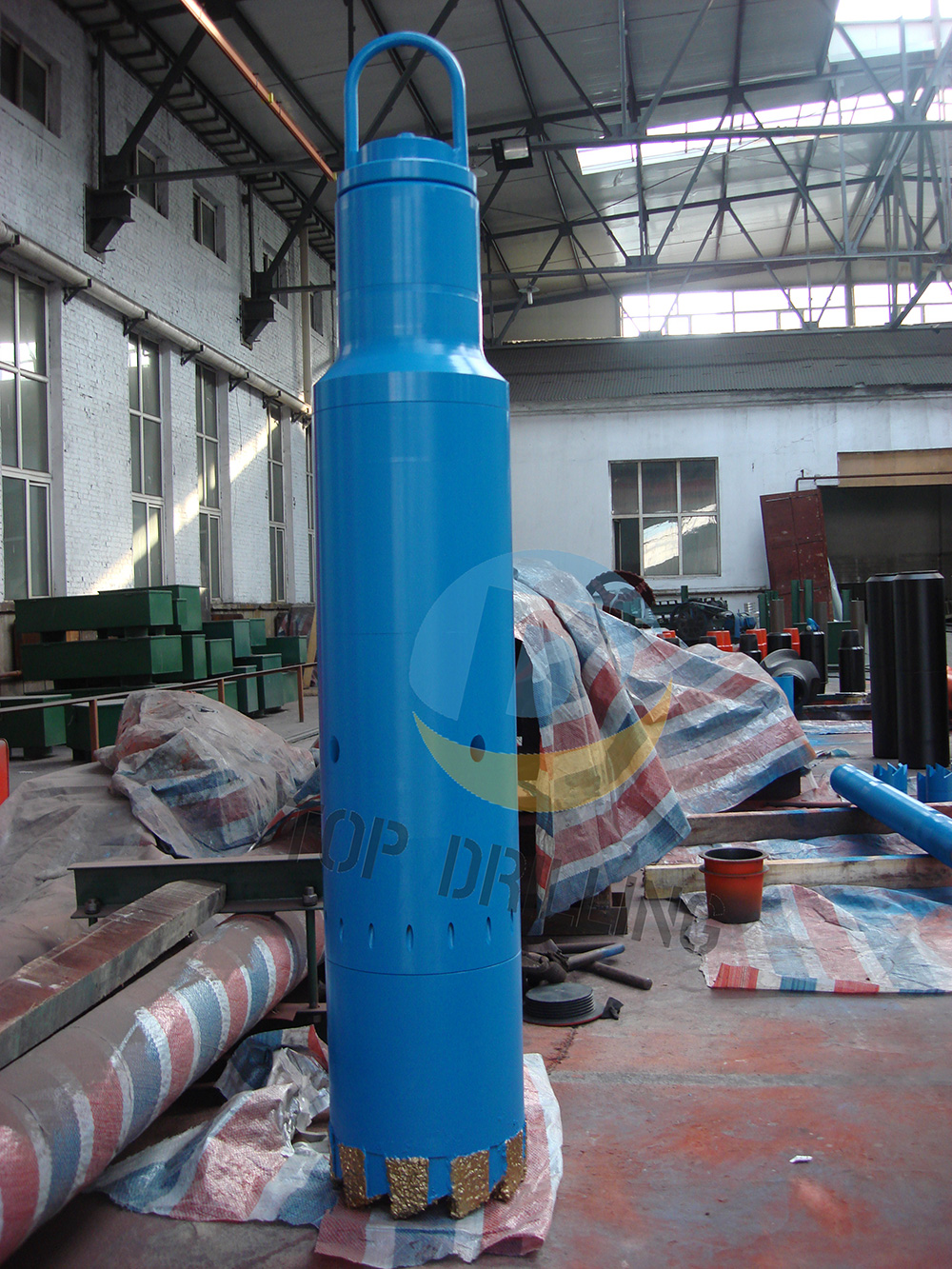

Reverse Circulation Junk Basket
RCJB is designed to remove all types of small junk objects from the hole.
Specifications
Model | Barrel O.D. (mm) | Mill Shoe O.D.(mm) | Fish Max. OD.(mm) | Ball Dia.(mm) | Thread Conn. | Hole size(mm) |
LL-381 | 381 | 386 | 282 | 55 | 7 5/8 REG | 406-444 |
LL-318 | 318 | 324 | 248 | 55 | 6 5/8 REG | 349-406 |
LL-F254 | 254 | 260 | 195 | 55 | 6 5/8 REG | 275-295 |
LL-F232 | 232 | 239 | 179 | 50 | NC50 | 255-270 |
LL-F206 | 206 | 210 | 159 | 45 | NC50 | 223-241 |
LL-F178 | 178 | 184 | 130 | 42 | NC50 | 198-209 |
LL-F130 | 130 | 136 | 94 | 40 | NC31 | 155-165 |
LL-F97 | 97 | 103 | 62 | 30 | NC26 | 117-127 |
LL-F89 | 89 | 94 | 55 | 30 | NC26 | 108-114 |

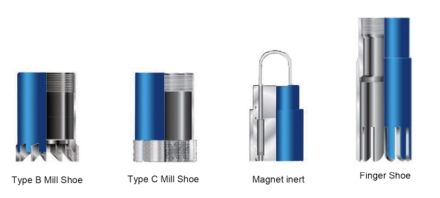

Related accessories:
