Releasing spear

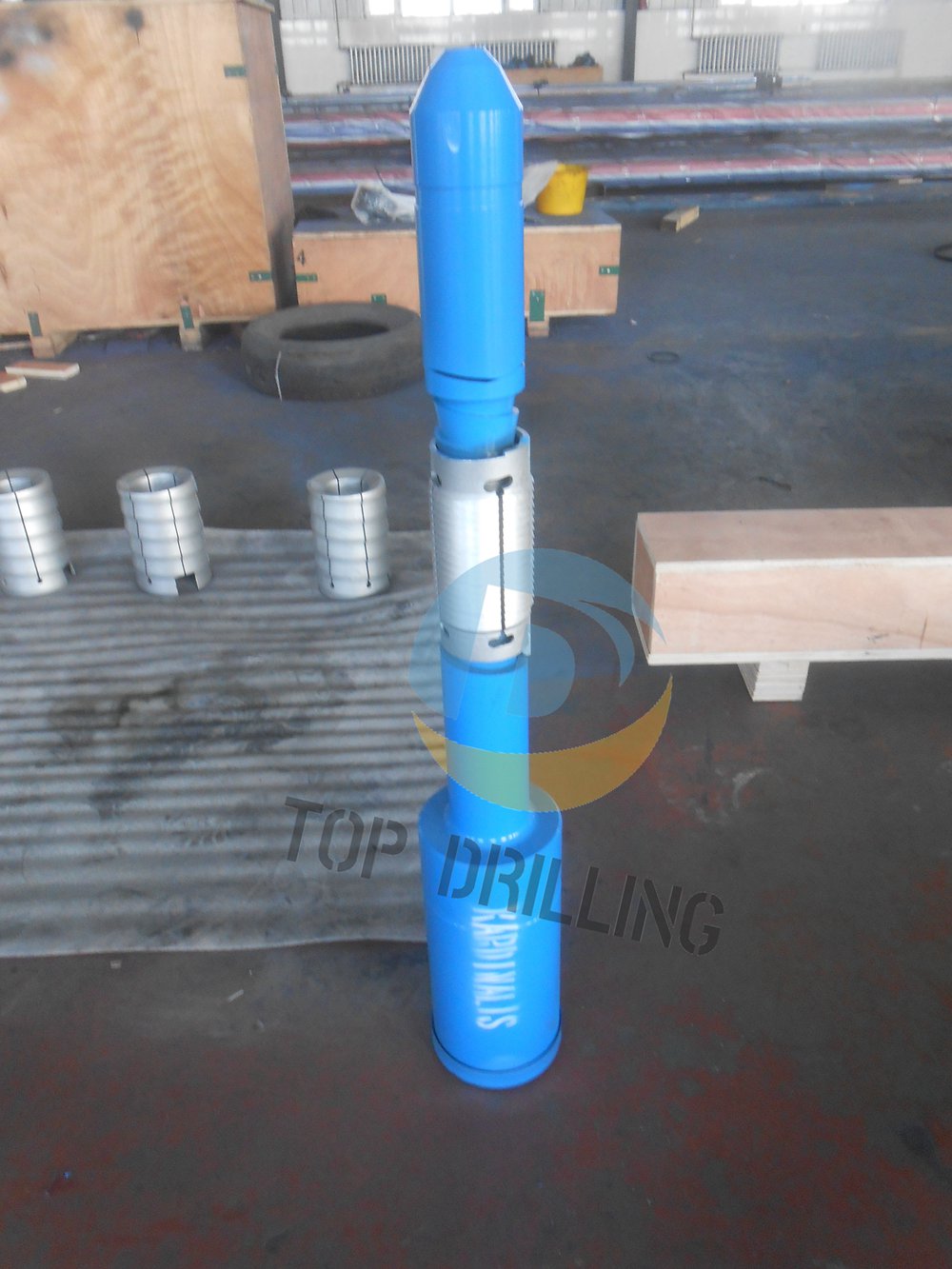

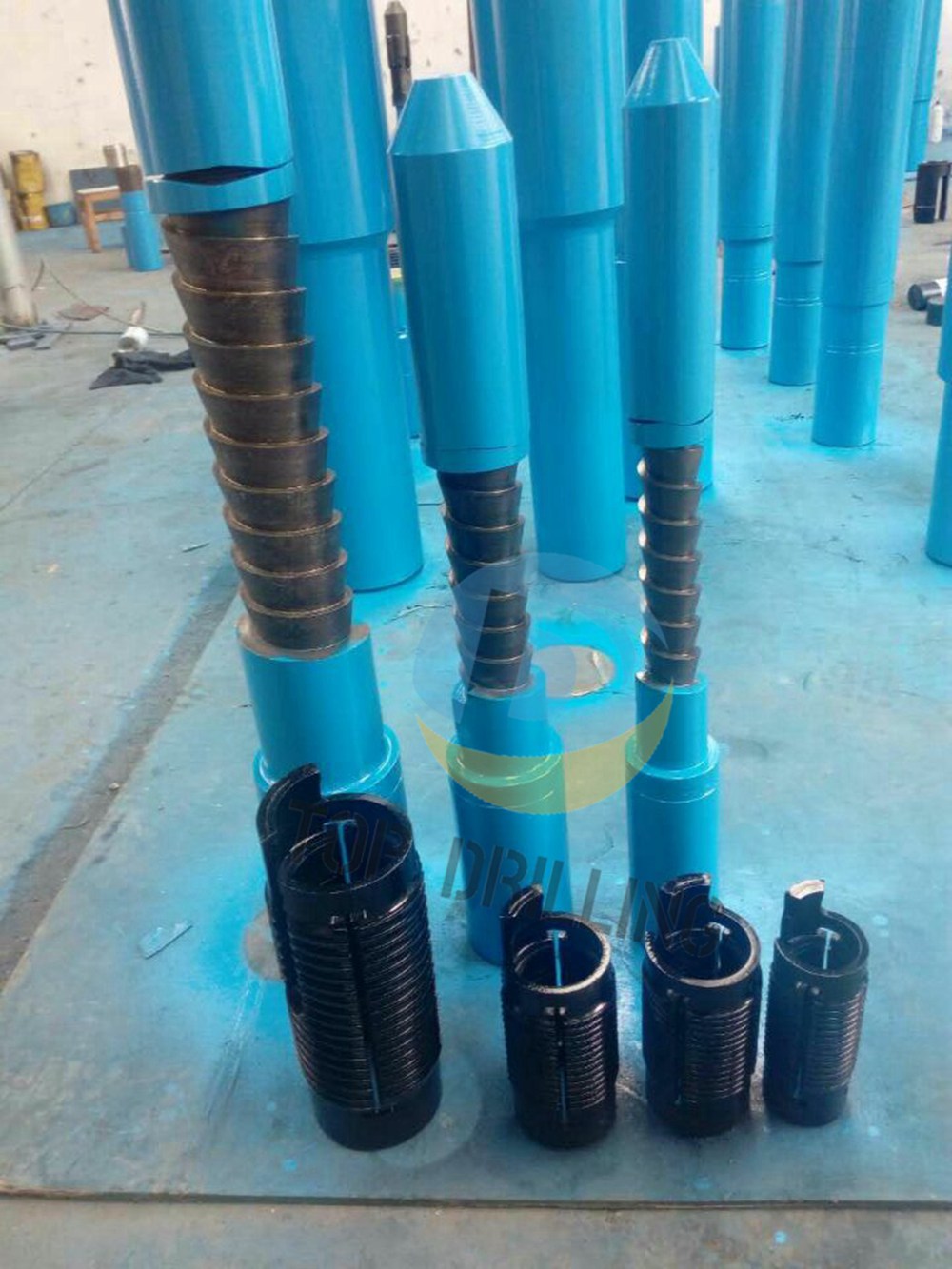

Type LM Releasing Spear is a simply constructed and high strength fishing tools and provide a positive means to engage and retrieve an internal fish from the well. It can be used with pack-off assemblies and internal cutters.
Specifications:
Model | Mandrel O.O(mm) | Catch size (mm) | Connection | Allowed Load (KN) |
LM-T340 | 203 | 313.6-323 | 6 5/8 REG | 2500 |
LM-T245 | 203 | 216.8-228.7 | 6 5/8 REG | 2500 |
LM-T178 | 162 | 150.4-166.1 | NC50 | 2200 |
LM-T140 | 162 | 118.6-127.3 | NC50 | 1500 |
LM-T127 | 162 | 102-115.8 | NC50 | 1300 |
LM-T89 | 121 | 70-77.8 | NC38 | 650 |
