Releasing and Circulating Overshot (Series 150)

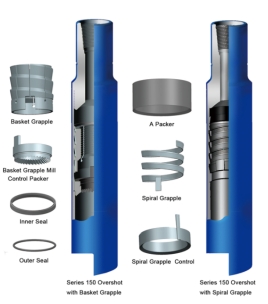

Series 150 Releasing and Circulating Overshot is an external fishing tool for engage, pack off and retrieve tubular fish, especially for fishing drill collar and drill pipe. One overshot can be dressed with different size of grapples for fishing different sizes of fish.
Specifications
Model | O.D. (mm) | API Connection | Max. catch size(mm) | |
Spiral grapple | Basket grapple | |||
LT-T340 | 340 | 6 5/8 REG | 286 | 260 |
LT-T270 | 270 | 6 5/8 REG | 228.6 | 209.6 |
LT-T206 | 206 | NC50 | 178 | 163 |
LT-T168 | 168 | NC50 | 127 | 114 |
LT-T127 | 127 | NC38 | 95 | 80 |
LT-T105 | 105 | NC31 | 85.7 | 73 |
