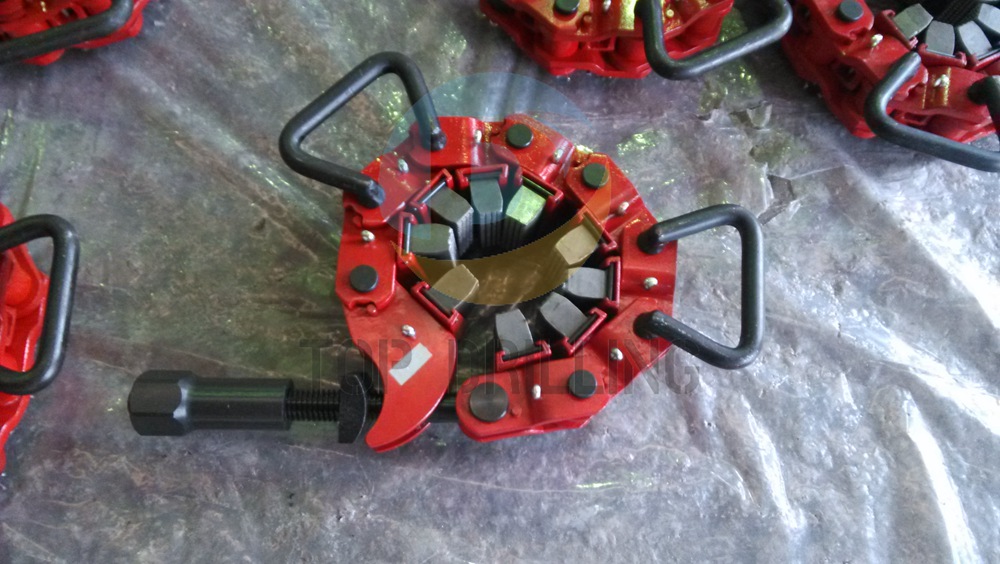

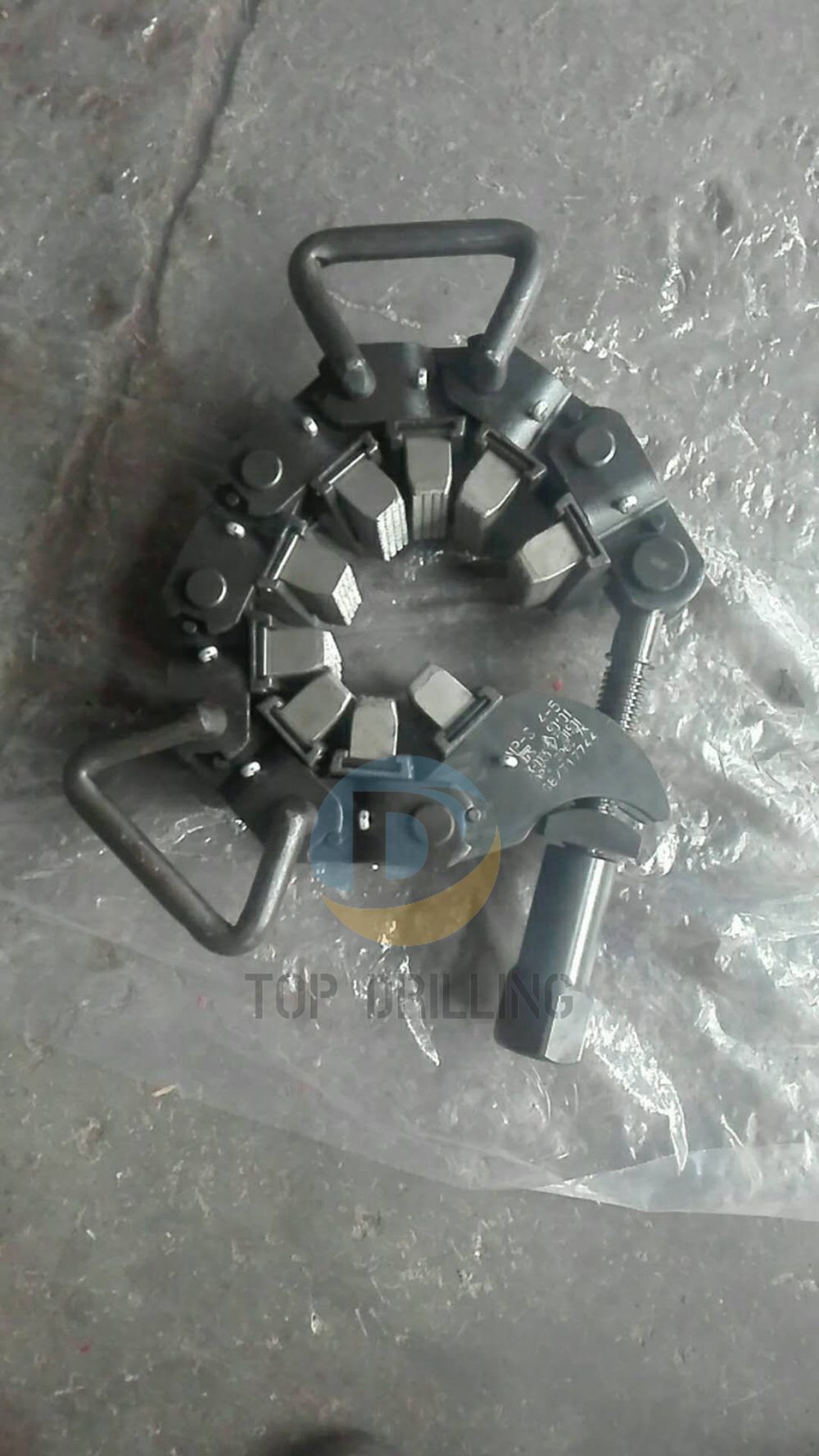

Safety Clamp Type C and T
Safety Clamp Type C and T are necessary tools for handling flush joint pipes and drill collars. They can accommodate pipes from 1-1/8” to 15-5/8”. They are designed and manufactured according to API SPEC 7K Specification for drilling and well servicing equipment.
Main Technical Parameters
Model | Size Range （in） | Total No. of Links |
WA-C | 3-3/4~4-5/8 | 7 |
4-1/2~5-5/8 | 8 |
5-1/2~6-5/8 | 9 |
6-1/2~7-5/8 | 10 |
7-1/2~8-5/8 | 11 |
8-1/2~9-5/8 | 12 |
9-1/2~10-5/8 | 13 |
10-1/2-11-5/8 | 14 |
11-1/2-12-5/8 | 15 |
12-1/2~13-5/8 | 16 |
13-1/2~14-5/8 | 17 |
14-1/2~15-5/8 | 18 |
WA-T | 1-1/8~2 | 4 |
2-1/8~3-1/4 | 5 |
3-1/2~4-1/2 | 6 |

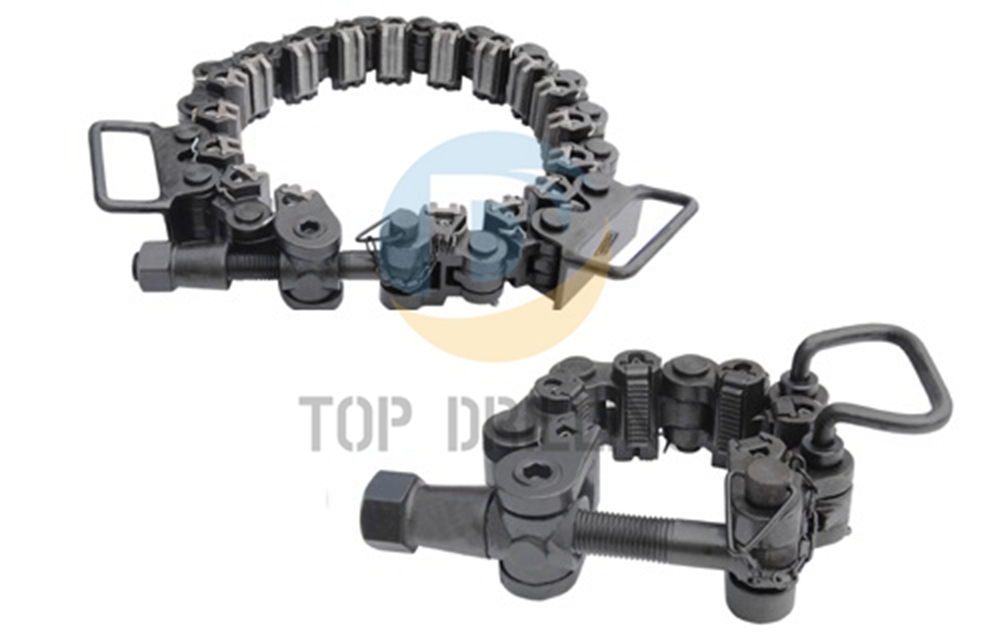

Safety Clamp Type MP
Safety Clamps Type MP are necessary tools for handling drill collars, flush joint pipes and small shoulder pipes. They could adjust pipes of different sizes by changing the quantity of chain links. They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
Main Technical Parameters
Model | Size Range （in） | Total No. of Links |
MP-S | 2-7/8~4-1/8 | 7 |
4~5 | 8 |
MP-R | 4-1/2~5-5/8 | 7 |
5-1/2~7 | 8 |
6-3/4~8-1/4 | 9 |
8~9-1/4 | 10 |
9-1/4~10-1/2 | 11 |
MP-M | 10-1/2~11-1/2 | 12 |
11-1/2~12-1/2 | 13 |
12-1/2~13-5/8 | 14 |
13-5/8~14-3/4 | 15 |
14-3/4~15-7/8 | 16 |
MP-L | 15-7/8~17 | 17 |
17~18-1/8 | 18 |
18-1/8~19-3/8 | 19 |
MP-XL | 19-3/8~20-3/8 | 19 |
20-3/8~21 -1/2 | 20 |
21 ~22-5/8 | 21 |
22-5/8~23-3/4 | 22 |
23-3/4~24-7/8 | 23 |
24-7/8~26 | 24 |
26~27-1/8 | 25 |
29-3/8~30-1/2 | 28 |
