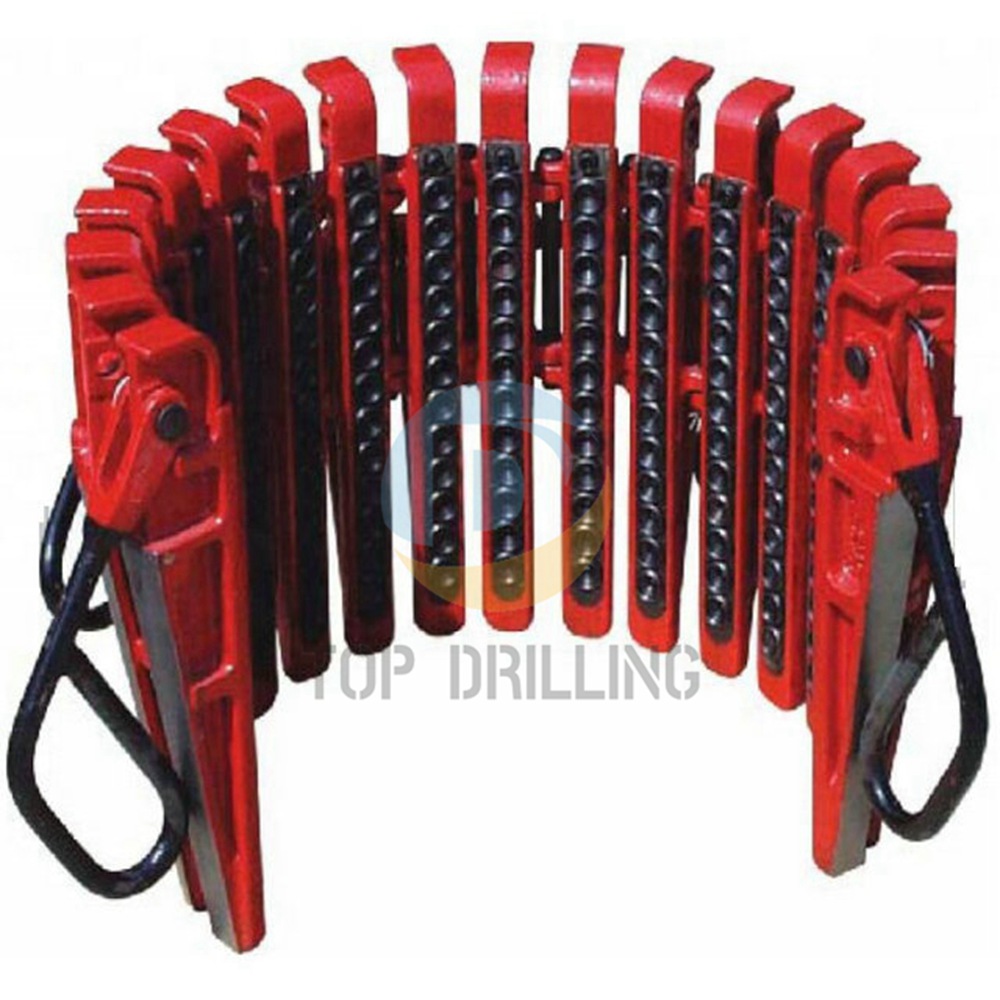

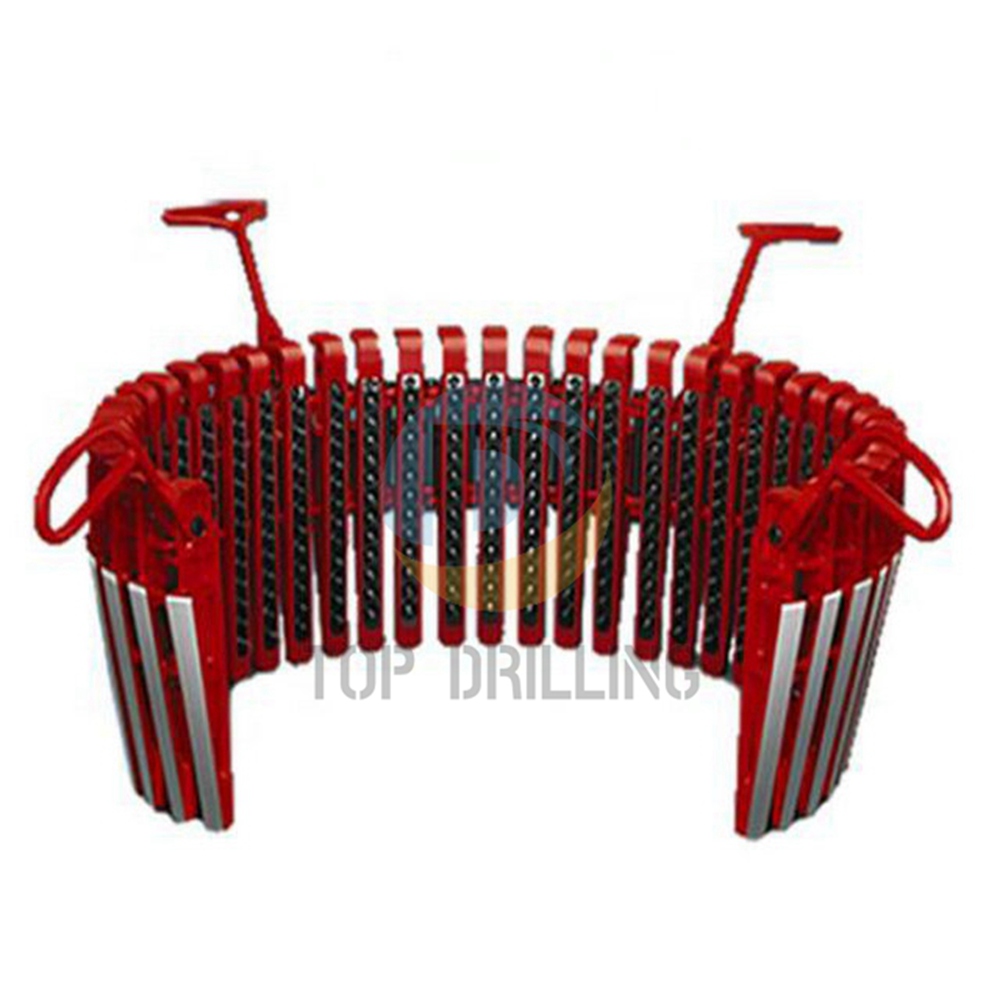

Casing Slip Type CMS
Casing Slips Type CMS can accommodate casings from 4-1/2 to 30in (114.3 to 762mm). They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
Main Technical Parameters
Casing OD | in | 4-1/2~5 | 5-1/2~6 | 6-5/8 | 7 | 7-5/8 | 8-5/8 | 9-5/8 | 10-3/4 |
mm | 114.3~127 | 139.7~152.4 | 168.3 | 177.8 | 193.7 | 219.1 | 244.5 | 273.1 |
Weight | kg | 76 | 71 | 89 | 83.5 | 75 | 82 | 87 | 95 |
lb | 168 | 157 | 196 | 184 | 166 | 181 | 192 | 209 |
Total No. of segments | 9 | 9 | 12 | 12 | 12 | 13 | 14 | 15 |
Use in insert bowl No. | API or No.3 | No.2 |
Casing OD | in | 11-3/4 | 13-3/8 | 16 | 18-5/8 | 20 | 24 | 26 | 30 |
mm | 298.5 | 339.7 | 406.4 | 473.1 | 508 | 609.6 | 660.4 | 762 |
Weight | kg | 118 | 117 | 140 | 166.5 | 174 | 201 | 220 | 248 |
lb | 260 | 258 | 308 | 367 | 383 | 443 | 486 | 546 |
Total No. of segments | 17 | 18 | 21 | 25 | 26 | 30 | 33 | 37 |
Use in insert bowl No. | No.1 | Match with relevant casing bushing |
