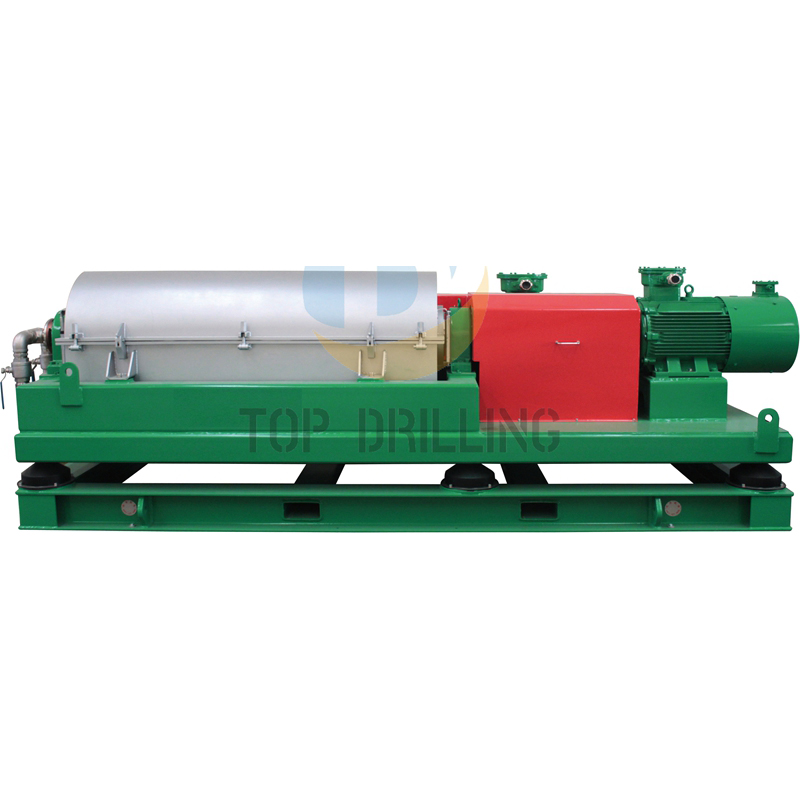

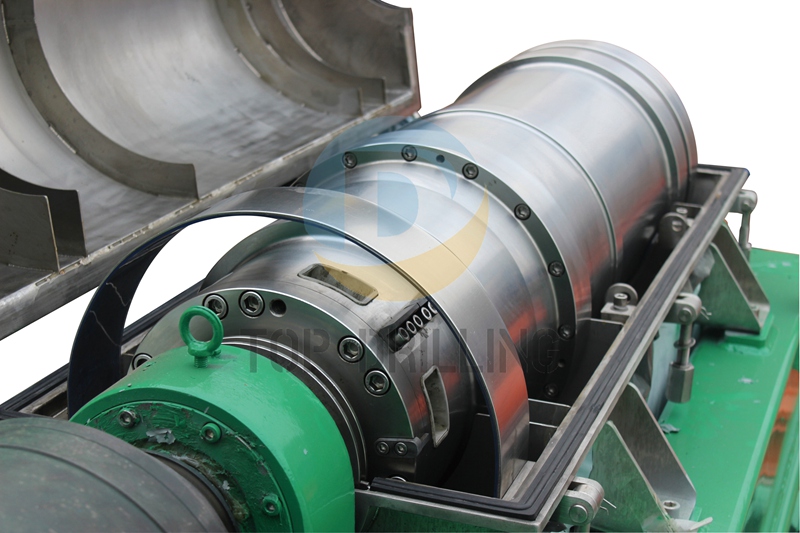

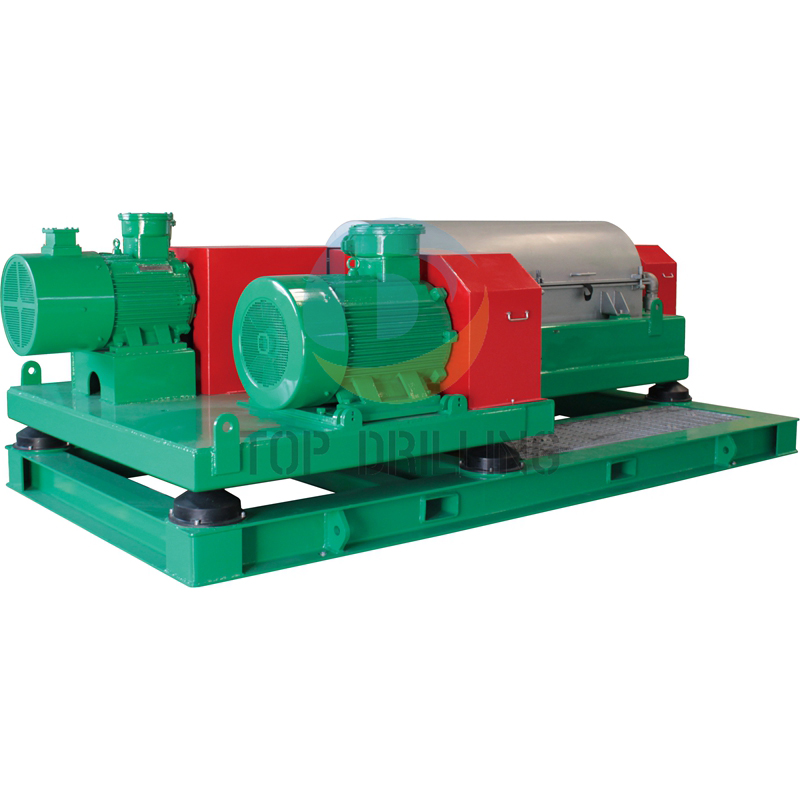

Decanter Centrifuge
Decanter Centrifuge is the last stage equipment in drilling mud system for solids control and mud cleaning. The superiority of Decanting Centrifuge is embodied in the solids processing size. Decanter Centrifuge could remove the solid particles with size 2-7 microns using the principle of centrifugal action, it is an ideal choice for separating particles in drilling mud.
Technical Parameters
Model | GNLW363C-GP | GNLW363C-VFD | GNLW453C-VFD | GNLW553C-VFD |
Bowl Diameter | 360mm(14inch) | 360mm(14inch) | 450mm(18inch) | 550mm(22inch) |
Bowl Length | 1271mm(50inch) | 1271mm(50inch) | 1540mm(61inch) | 1800mm(71inch) |
Max. Capacity | 200GPM(45m3/h) | 200GPM(45m3/h) | 352GPM(80m3/h) | 484GPM(110M3/h) |
Effective Capacity | 132GPM(30m3/h) | 132GPM(30m3/h) | 264GPM(60m3/h) | 400GPM(90m3/h) |
Max Bowl Speed | 3900RPM | 3900RPM | 3200RPM | 3000PRM |
Typical Bowl | 3200RPM | 0~3200RPM | 0~2800RPM | 0~2500RPM |
Speed |
Max G-Force | 3063 | 3063 | 2578 | 2719 |
Typical G-Force | 2062 | 0~2062 | 0~1973 | 0~1888 |
Separation point | 2~5µm | 2~5μm | 2~5µm | 2~5μm |
Differential Speed | 40 | 0~40 | 0~35 | 0~45 |
Gearbox Torch | 3500N.M | 3500N.M | 7500N.M | 12000N.M |
Gear Box Ration | 57:1 | 57:1 | 57:1 | 35:1 |
Main Drive Motor | 37KW(50HP) | 37KW(50HP) | 55KW(75HP) | 90KW(120HP) |
Back Drive Motor | 11KW(15HP) | 11KW(15HP) | 22KW(30HP) | 37KW(50HP) |
Recommend Pump | 7.5KW(10HP) | 7.5KW(10HP) | 15KW(20HP) | 22KW(30HP) |
EX Standard | ExdIIBt4 / IEC EX/ ATEX |
Electric Carbinet | Exd Standard | PLC+Positive Presurized |
Weight | 3500KG | 3400KG | 4580KG | 5840KG |
Dimension(mm) | 3305x1638x1277 | 3305x1638x1277 | 3824x1798x1317 | 4293x1978x1381 |
