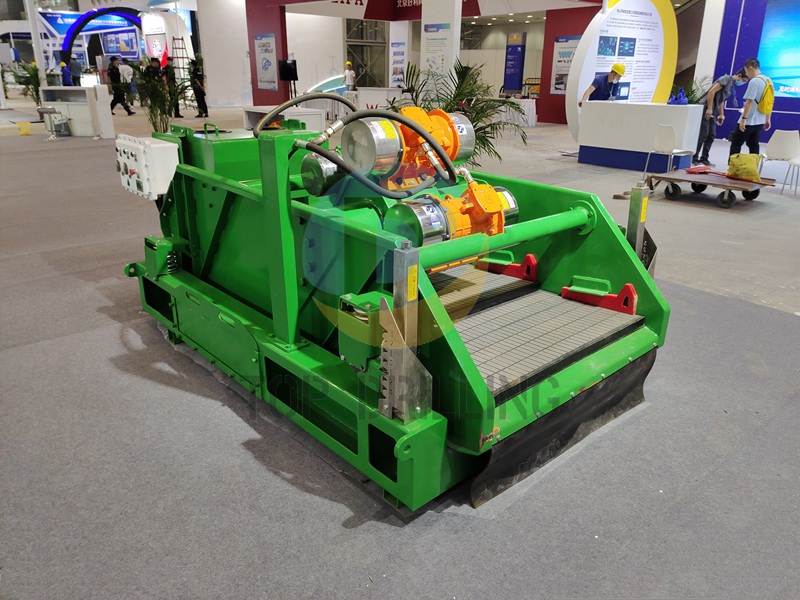

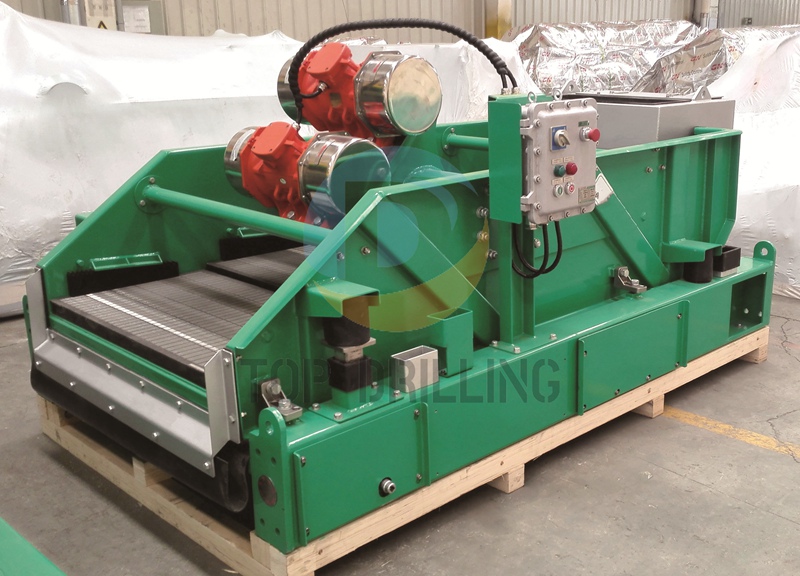

Shale Shaker
Shale Shaker Features
◆Ajustable High G force for primary solids control or cuttings drying.
◆Heat treatment on complete shale shaker deck.
◆Vibrating Motor: IEC Ex, ATEX and UL Certified
◆Electrical components: SIEMENS, Schneider Brand
◆Shale Shaker Bottom Deck Material:Stainless Steel

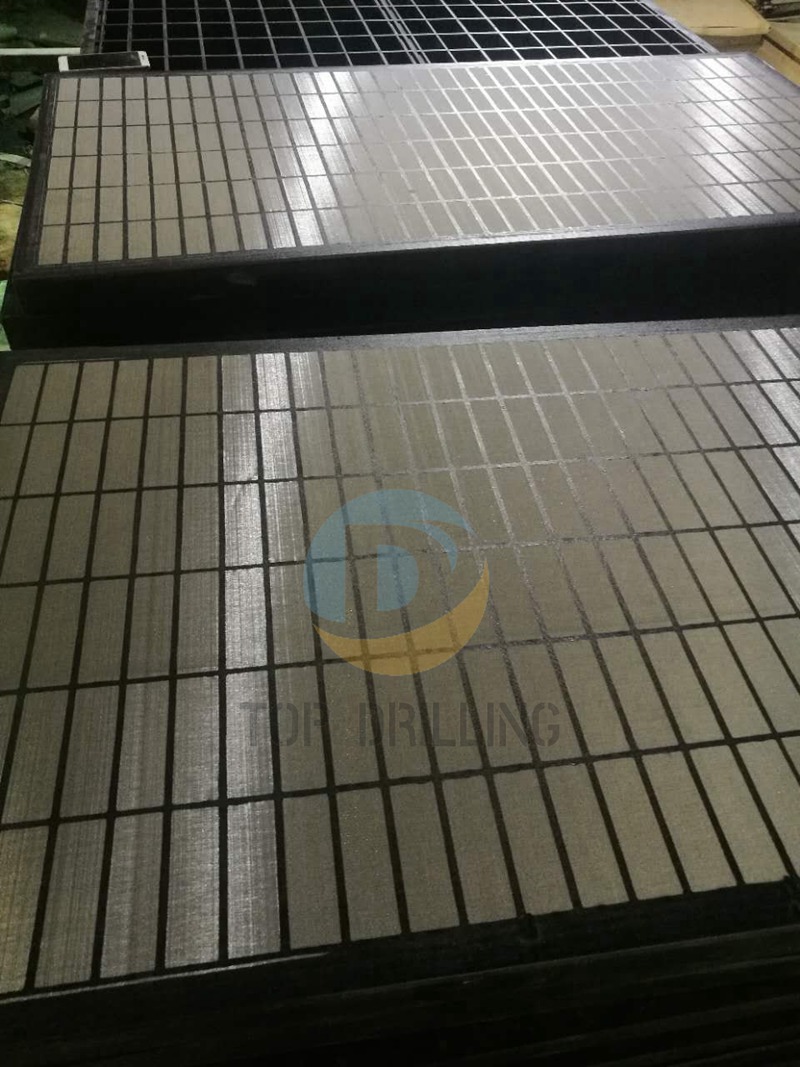

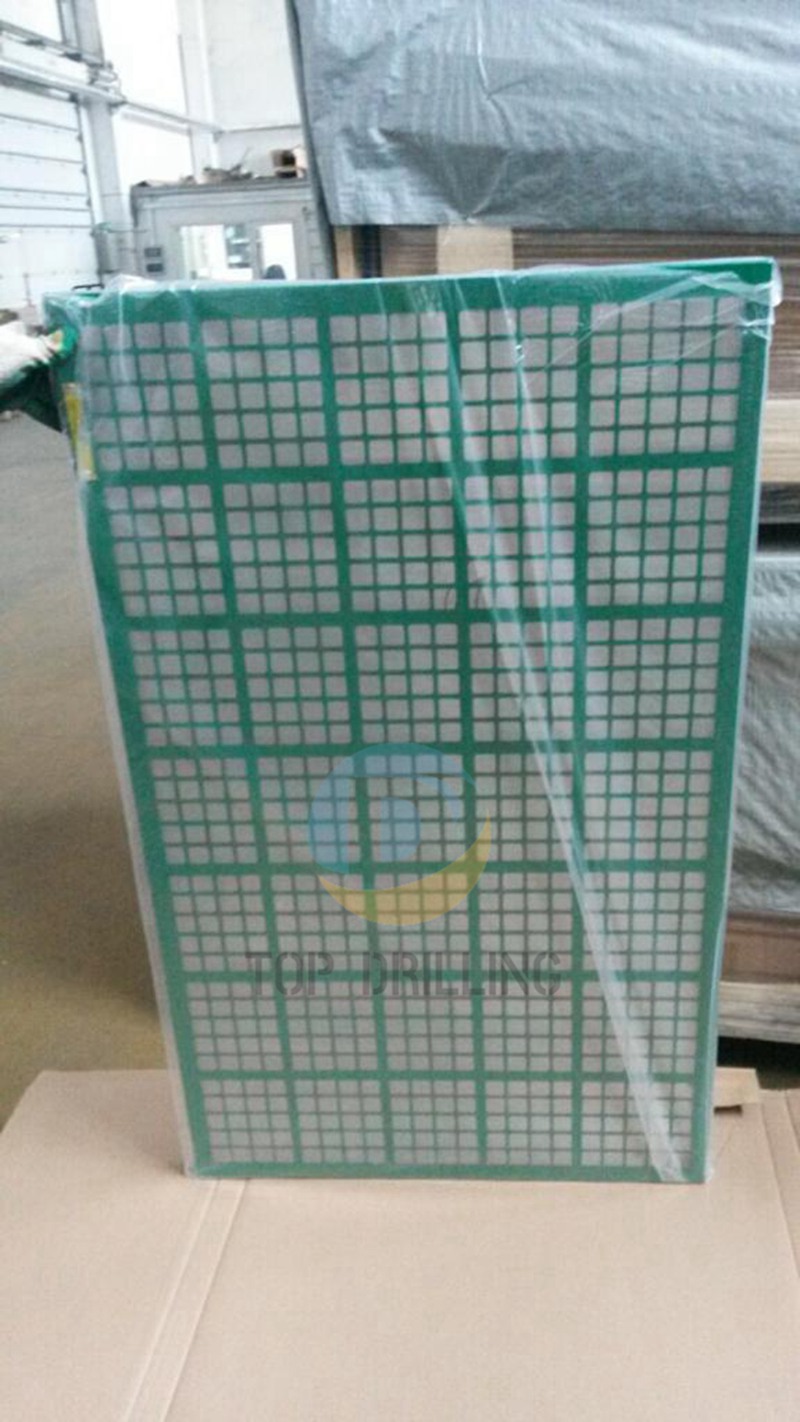

◆Wedge type design for easy and quick screen replacement
◆Electric Shaker Deck angle adjustable while working
Technical Parameters
Model | GNZS752F-MDZF | GNZS703F-SHBF | GNZS703F-SDZF | GNZS594F-SHBF | GNZS594F-SGZF |
Vibration Mode | Linear Motion |
Capacity | 45m3/h(200GPM) | 120m3/h(528GPM) | 140m3/h(616GPM) |
Vibration Motor | 2×0.75Kw | 2×1.72Kw | 2×1.94Kw |
Screen Qty | 2pcs | 3pcs | 4pcs |

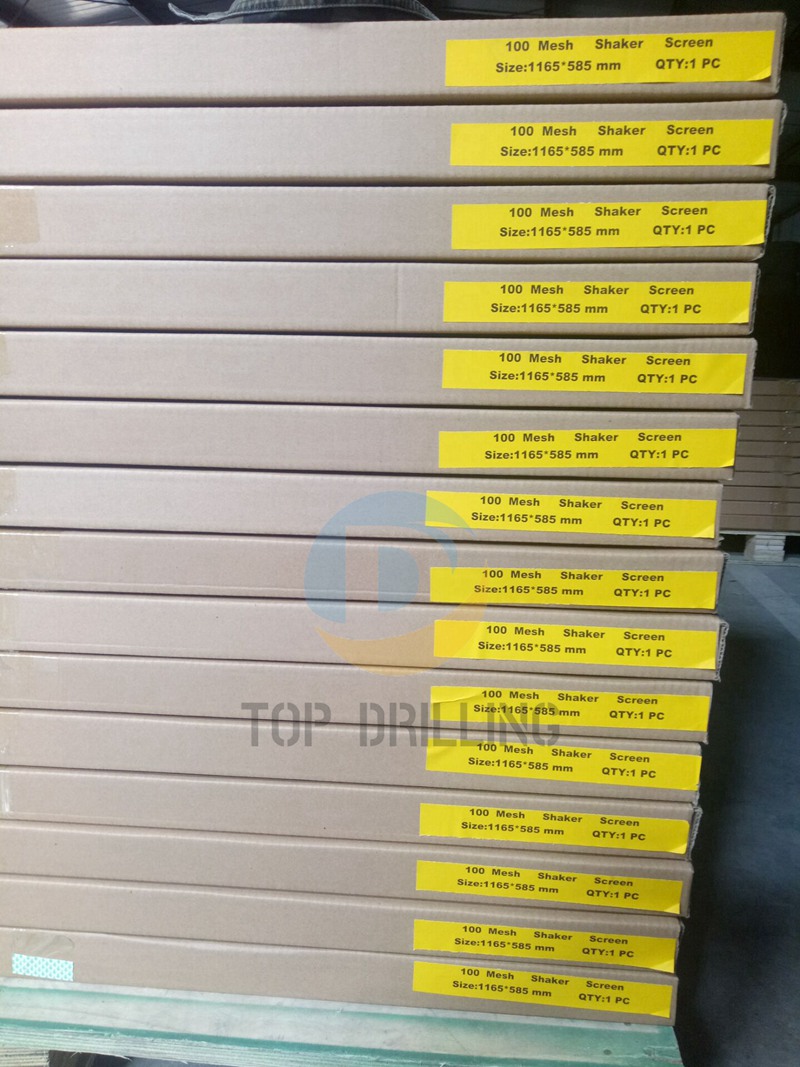

Screen Size: L×W | 750×900mm | 700×1250mm | 585×1165mm |
Screen Area | 1.35m2 | 2.63m2 | 2.73m2 |
Adjustable G Force | ≤7.1G | ≤7.5G | ≤8.0G |
Vibration Amplitude | 3.92~5.62mm | 4.14~5.96mm | 4.4~6.34mm |
Deck Angle Range | +2° | -1°~+5° (Adjustable) |
Feeding Type | Box Feeder | Weir Feeder | Box Feeder | Weir Feeder | Hopper Feeder |
Weir Height | 710mm | 895mm | 1042mm | 895mm |
EX Standard | ExdIIBt4 / IEC EX/ ATEX |
Weight (Kg) | 893 | 1675 | 1742 | 1722 | 1638 |
Dimension: L×W×H(mm) | 1676×1689×1062 | 2717×1998×1428 | 2419×2055×1474 | 2937×1998×1428 | 2761×1998×1428 |
Remarks: | Low Weir Feeding Shale Shaker GNZS703F-SLWF weir height 500mm is available for option |
