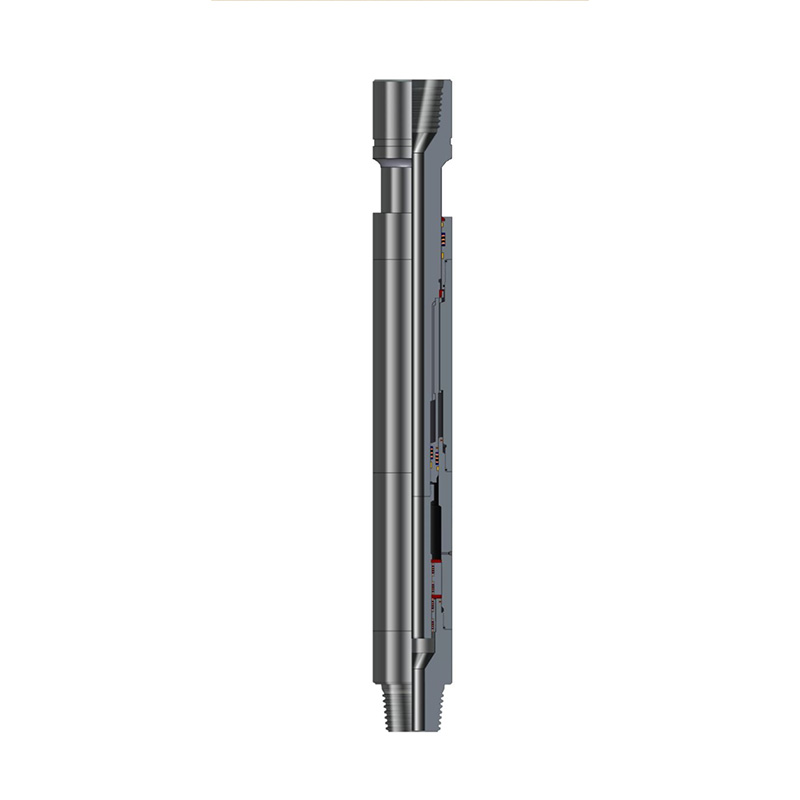

Two-Way Shock Sub Type SJ
Model “SJ” Two-Way Shock Sub should be mounted on drill string which is near the bit. It can slow or sorbs the longitudinal bounce and peripheral torque impact of drill bit (drill string) simultaneously. It should realize the best fitting of drill pressure and rotation rate as to reduce the drill cost and improve the drilling efficiency. It can be used for the drill-in or coring of hard layer, gravel layer and soft-hard interlayer.
Specifications
Model | Tool OD
mm
(in) | ID
mm
(in) | Conn. | Max. Working
Load
kN(lbf) | Max. Working
Torque
kN·m(lbf/ft) | Max. Working
Pressure
kN(lbf) | Max. working
stroke
mm(in) | Rigidity
kN/cm | Overall Length mm |
SJ121 | 121
(4 3/4) | 38
(1-1/2) | NC38 | 1000
(224800) | 10
(7300) | 300
(67000) | 100
(3.9) | 3.0～5.0 | 4208 |
SJ165 | 165
(6 1/2) | 48
(1-7/8) | NC46 | 1500
(337200) | 15
(11000) | 350
(78600) | 120
(4.7) | 5494 |
SJ203 | 203
(8) | 65
(2-1/2) | 6-5/8REG | 2000
(450000) | 20
(14000) | 450
(101000) | 120
(4.7) | 4040 |
SJ229 | 229
(9) | 71.4
(2-13/16) | 7-5/8REG | 2000
(450000) | 20
(14000) | 540
(121000) | 140
(5.5) | 4090 |
SJ254 | 254
(10) | 76.2
(3) | 8-5/8REG | 2500
(562000) | 25
(18000) | 600
(130000) | 120
(4.7) | 4100 |
