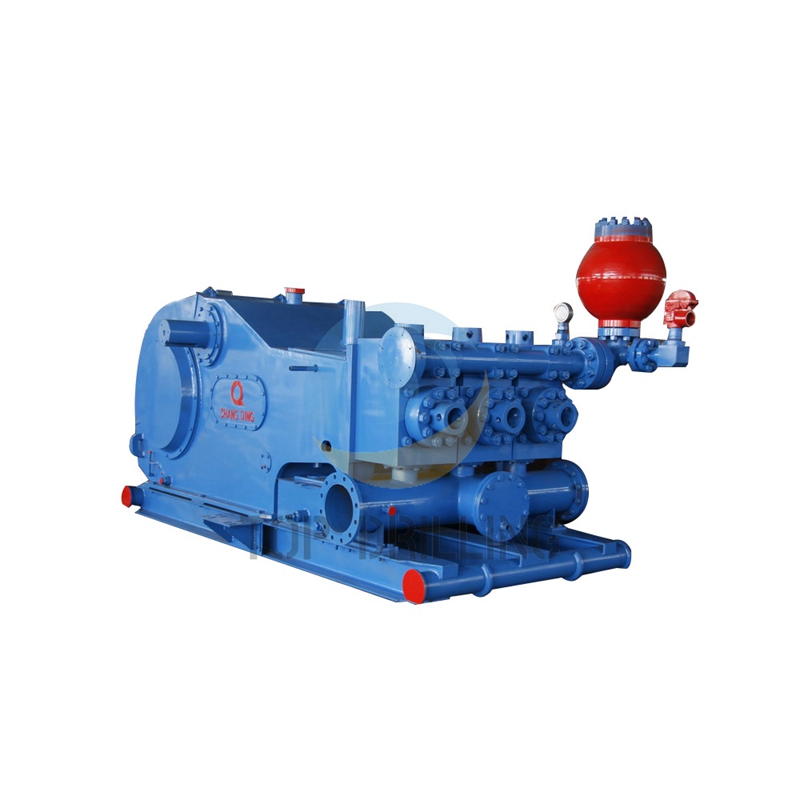

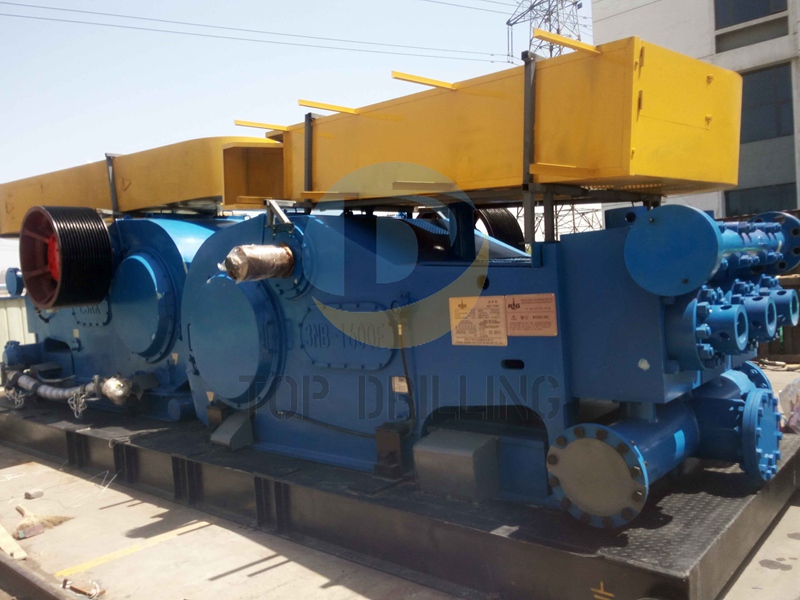

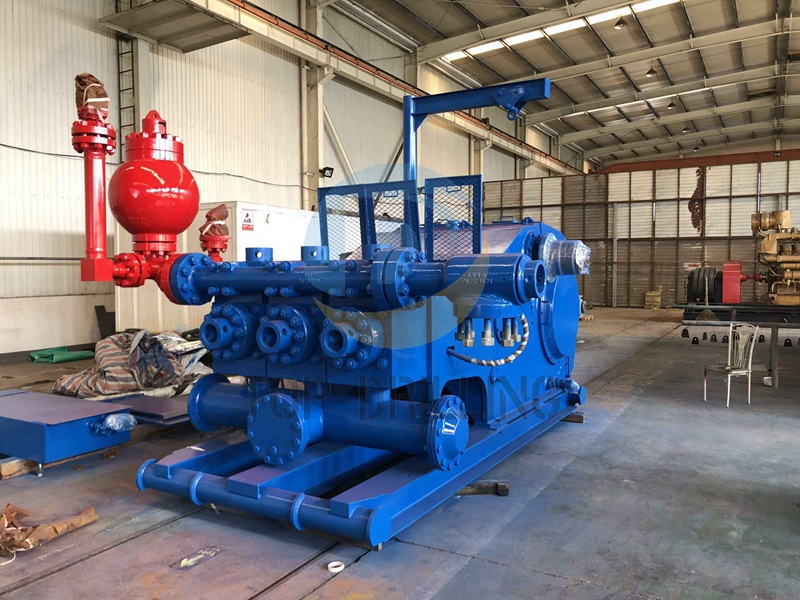

MUD PUMP
Triplex Mud Pumps is one of the most important equipment in the drilling operation which discharge high viscosity, heavy density and low sand contented fluid to well bottom in order to cool drill bit, flush well, crush the rock and take out debris. We can supply F500-F1600 series normal drilling pump.
Mud pump is designed and manufactured in compliance with API Speck 7K Specification for Drilling Equipment .All wearing parts of fluid end (valve, valve seat, liner and etc) can be interchanged acc to API specification.
Technical Parameters
Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 |
Max.Liner Dia. in.(mm) | 6 3/4 (171) | 6 3/4 (171) | 6 3/4 (171) | 7(177.8) | 7(177.8) |
Stroke | 7 1/2(191) | 9(229) | 10(254) | 12(304.8) | 12(304.8) |
Rated speed | 165 | 150 | 140 | 120 | 120 |
Rated Power | 500(373) | 800(597) | 1000(746) | 1300(969) | 1600(1193) |
Gear ratio | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 | 4.206:1 |
Suction Inlet | 8 | 10 | 12 | 12 | 12 |
Discharge Outlet | 4˝ | 5˝ | 5˝ | 5˝ | 5˝ |
Valve Pot | API #5 | API #6 | API #6 | API #7 | API #7 |
Weight | 9770 | 14500 | 18790 | 24572 | 24791 |
MUD PUMP Spare Parts
Bi-metal liner |
Ceramic liner |
Connecting rod |
Crosshead Pin |
Crosshead |
Cylinder cover, Valve cover |
Gear |
Hydraulic Cylinder |
Piston Assy |
Piston rod |
Upper Guide Slide |
Valve Assy, Valve Body, Valve Seat |
